Tailgate Lower Stop Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate lower stop (A) by pulling it out to detach the clips.

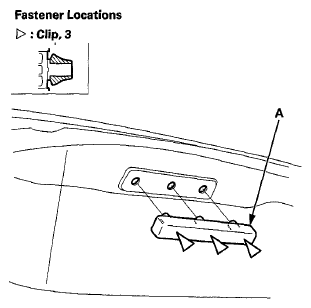

    Fig 1: Locating Tailgate Lower Stop
    G06419970Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Replace the tailgate lower stop with a new one.
  3. Install the tailgate lower stop by pushing on the clip areas until the clips snap into place.
