Tailgate Dynamic Damper Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the tailgate.
  1. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Remove the bolts (A), then remove the tailgate dynamic damper (B).

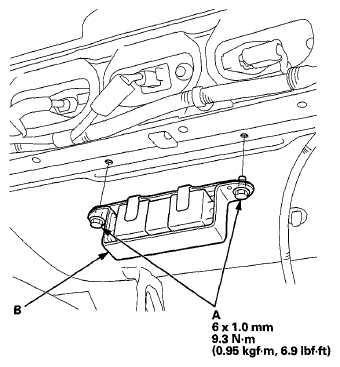

    Fig 1: Locating Bolts And Tailgate Dynamic Damper With Torque Specifications
    G06419969Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the damper in the reverse order of removal.
