Front Passenger's Power Window Motor Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Motor Test

Remove the front passenger's power window switch (see FRONT PASSENGER'S POWER WINDOW SWITCH REPLACEMENT ).
Test the motor in each direction by connecting battery power and ground to the front passenger's power window switch 37P connector (A) according to the table.

Fig 1: Front Passenger's Power Window Switch 37P Connector Terminals Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

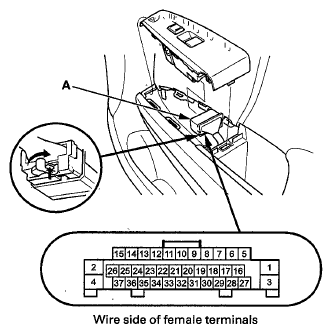

Fig 2: Identifying Front Passenger's Power Window Switch 37P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to next step, if the motor runs smoothly, go to step 8.
Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A) from the front passenger's power window motor (B).

Fig 3: Identifying Front Passenger's Power Window Motor 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check for continuity between the front passenger's power window switch 37P connector terminals and front passenger's power window motor 6P connector terminals as shown. There should be continuity.

CONNECTOR TERMINALS REFERENCE

Front passenger's power window switch 37P connector	Front passenger's power window motor 6P connector
1 (RED)	2 (RED)
2 (BLU)	1 (BLU)

Fig 4: Identifying Front Passenger's Power Window Switch And Front Passenger's Power Window Motor Connector Terminal Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If there is no continuity, repair an open or high resistance in the wire(s). If the wire harness is OK, faulty driver's power window motor; replace the front passenger's door regulator (see FRONT DOOR GLASS AND REGULATOR REPLACEMENT ).
Hall IC Unit (Pulser) Test
Do the front passenger's power window switch input test at terminals No. 35, No. 36, and No. 37 (see FRONT PASSENGER'S POWER WINDOW SWITCH INPUT TEST ).
