Rocker Arm Oil Pressure Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the rocker arm oil pressure sensor connector, then remove the rocker arm oil pressure sensor.

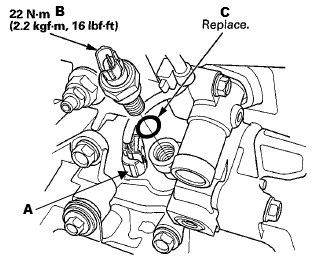

    Fig 1: Rocker Arm Oil Pressure Sensor Connector With Torque Specifications
    G06422346Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove all of the old liquid gasket from the rocker arm oil pressure sensor mounting hole.
  3. Clean and dry the rocker arm oil pressure mounting hole.
  4. Apply liquid gasket (P/N 08717-0004, 08718-0003, 08718-0004, or 08718-0009) to the rocker arm oil pressure sensor threads. Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the rocker arm oil pressure sensor.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
  5. Install the rocker arm oil pressure sensor with a new O-ring (C).
  6. Connect the rocker arm oil pressure sensor connector.
