PCV Valve Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover (see step 1 in ENGINE REMOVAL ).
  2. Check the PCV valve (A), the hoses (B), and the connections for leaks or restrictions.

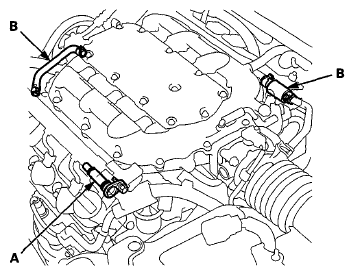

    Fig 1: Identifying PCV Valve And Hoses
    G06422944Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. At idle, listen to the PCV valve (A) with a stethoscope as you lightly pinch the PCV hose (B) with your fingers or pliers several times. Each time the hose is pinched, the valve should click.

    If there is no clicking sound, check the PCV valve grommet for cracks or damage. If the grommet is OK, replace the PCV valve and recheck.

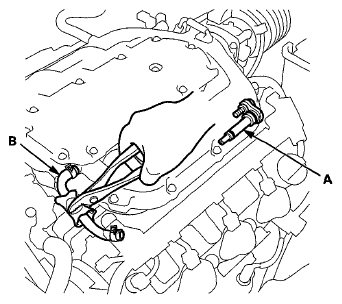

    Fig 2: Identifying PCV Valve And PCV Hose
    G06422945Courtesy of AMERICAN HONDA MOTOR CO., INC.
