Honda
>>
2007
>>
Element SC, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Circuit Diagram
>>
EX and SC Models Without Navigation
EX and SC Models Without Navigation

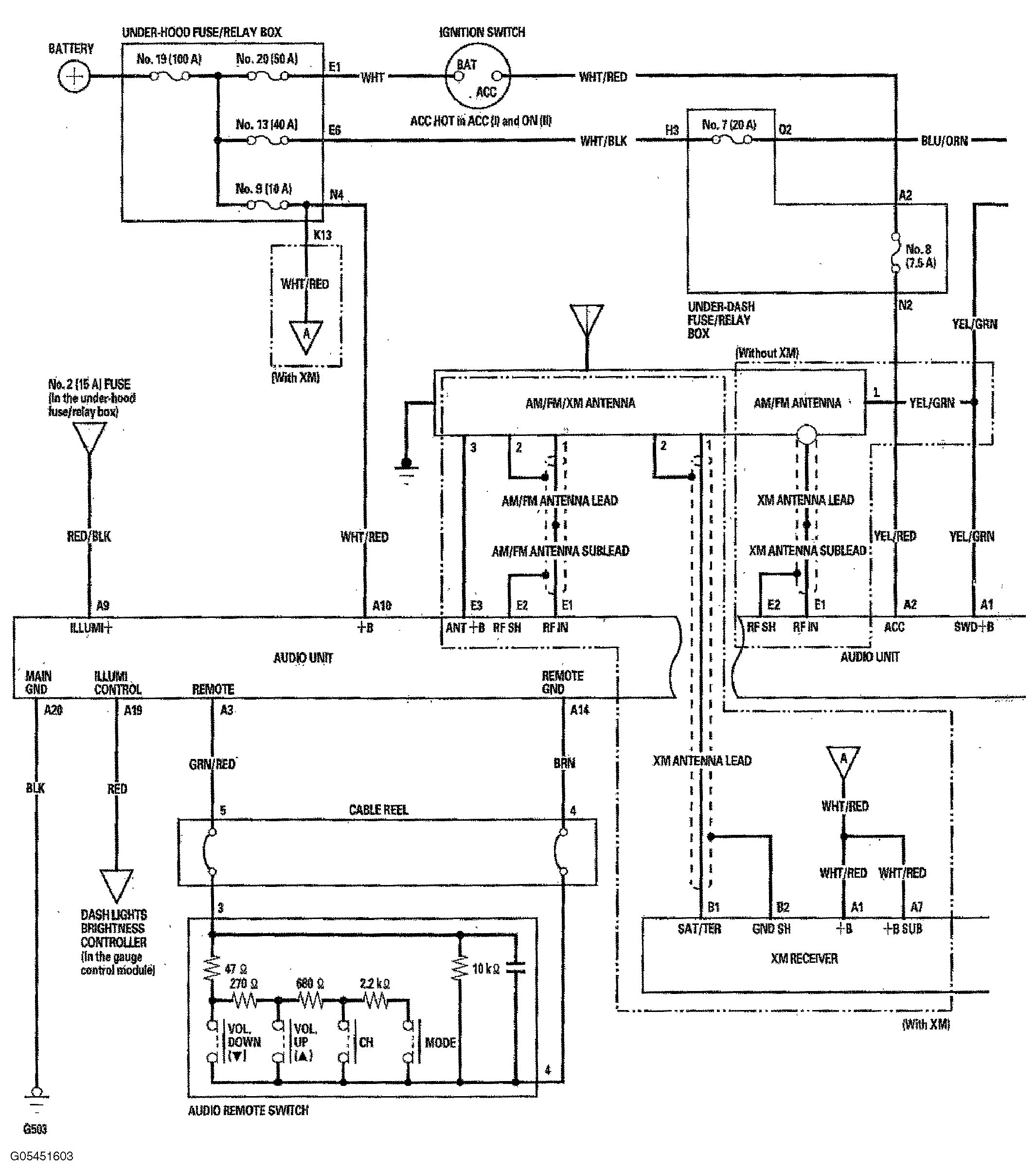

Fig 1: Identifying Audio System Circuit Diagram - EX & SC Models Without Navigation (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

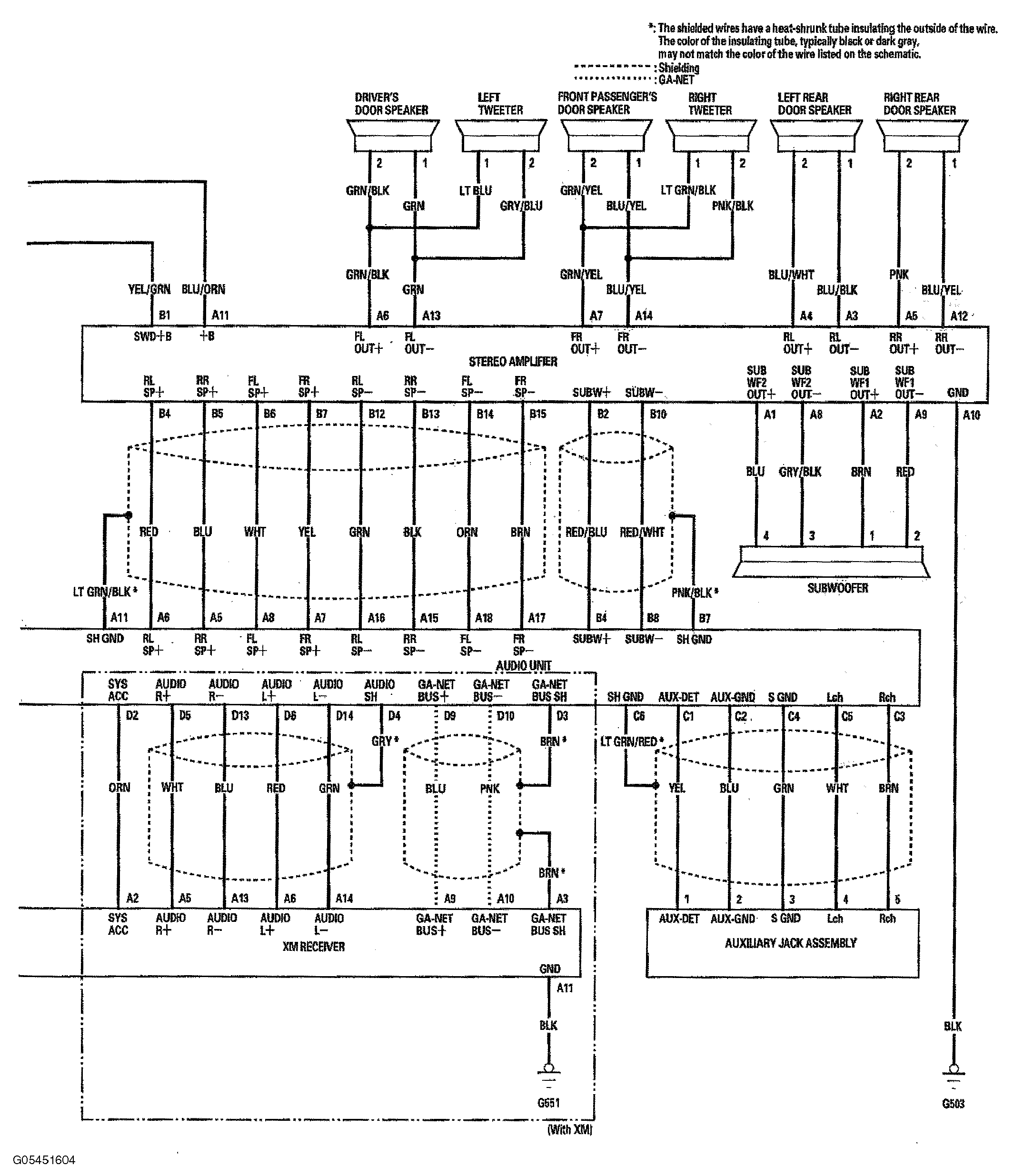

Fig 2: Identifying Audio System Circuit Diagram - EX & SC Models Without Navigation (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
