DTC P1440 (57): Motor Control Module (MCM) Circuit Malfunction: Notes

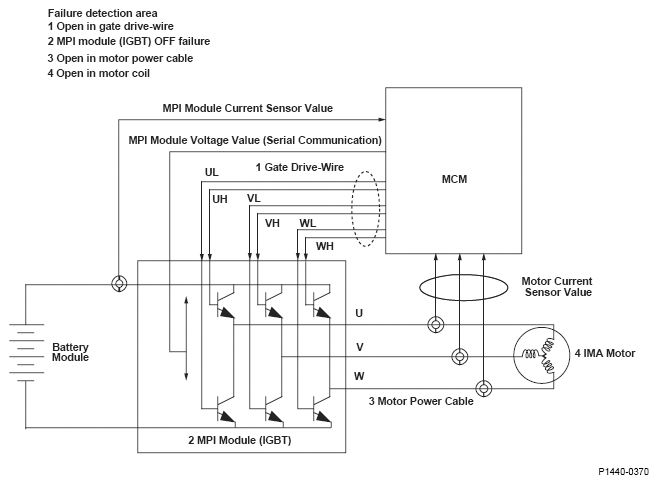

Fig 1: Motor Control Module - Circuit Diagram

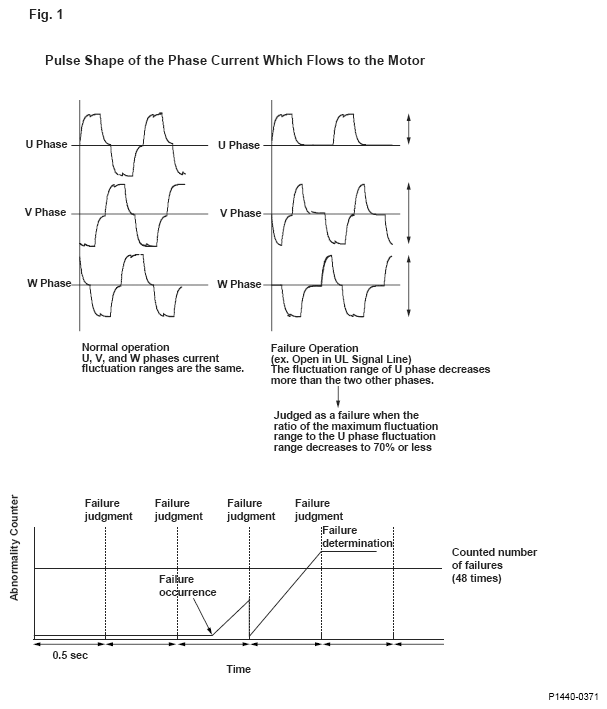

Fig 2: Pulse Shape Of Phase Current

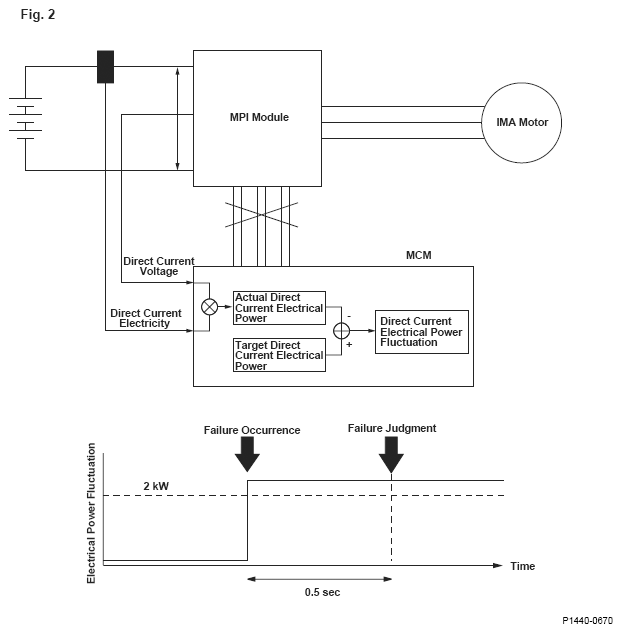

Fig 3: Motor Power Inverter Module - Circuit Diagram
