Cruise Control Combination Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Remove the steering wheel trim.
   Fig 1: Removing Steering Wheel Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the cruise control combination switch.
   Fig 2: Removing Cruise Control Combination Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check for continuity between the terminals in each switch position according to Fig 3 .
   • If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the switch.

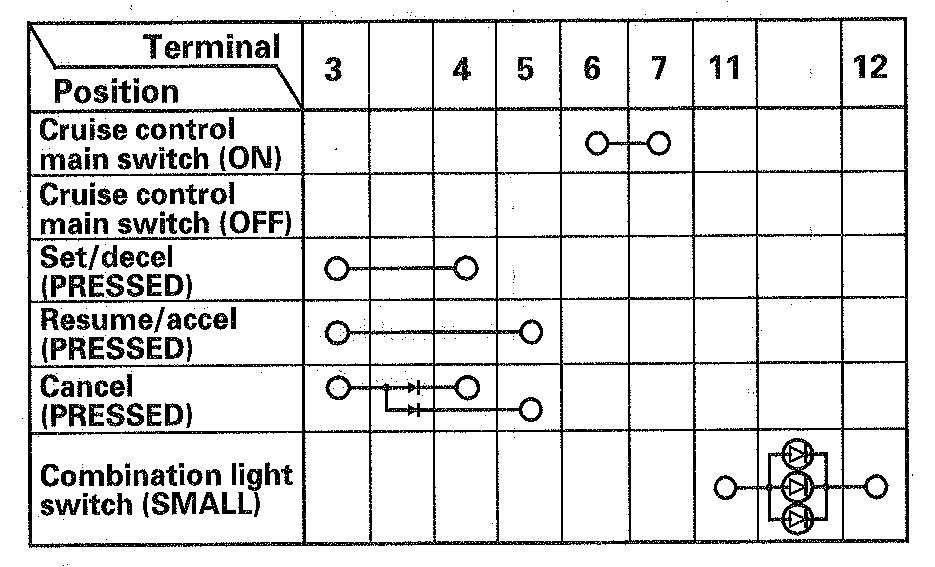

     Fig 3: Checking Continuity Between Cruise Control Combination Switch

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
