VSA Modulator-Control Unit (VSA) Connector End View

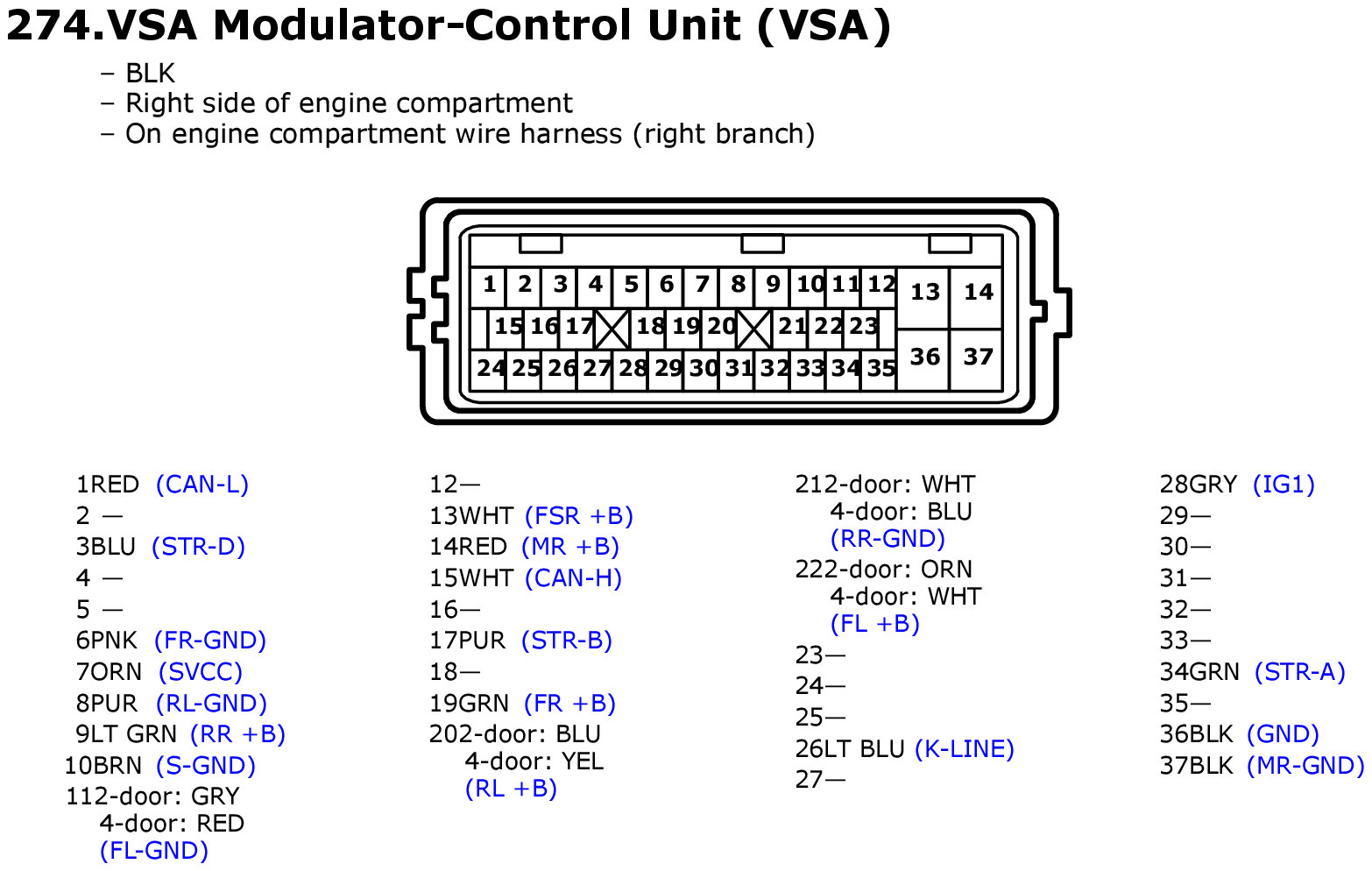

Fig 1: VSA Modulator-Control Unit (VSA) Connector End View

GHHW2052

Courtesy of AMERICAN HONDA MOTOR CO., INC.
