Heater Control Panel/HVAC Control Unit Connector End View

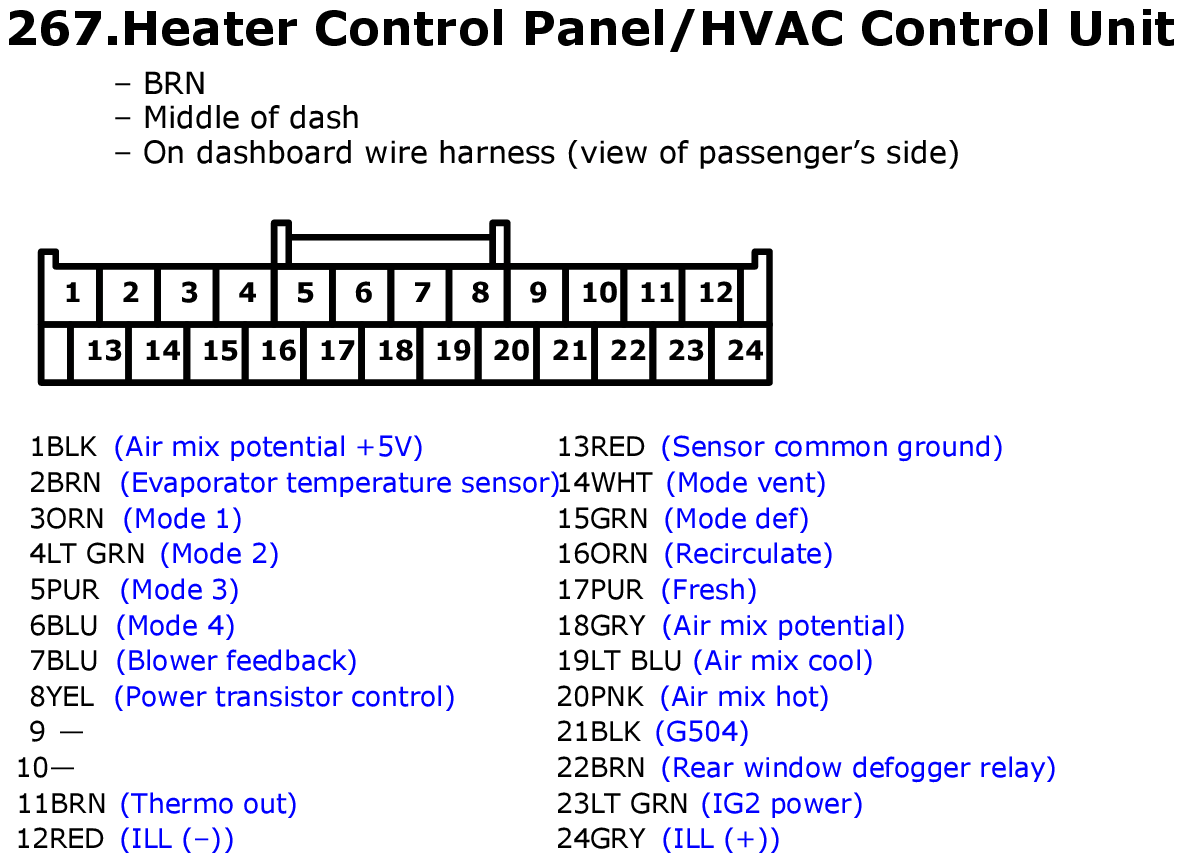

Fig 1: Heater Control Panel/HVAC Control Unit Connector End View

GHHW1741

Courtesy of AMERICAN HONDA MOTOR CO., INC.
