Circuit Diagram - PCM A/T Control System - K24Z6 Engine

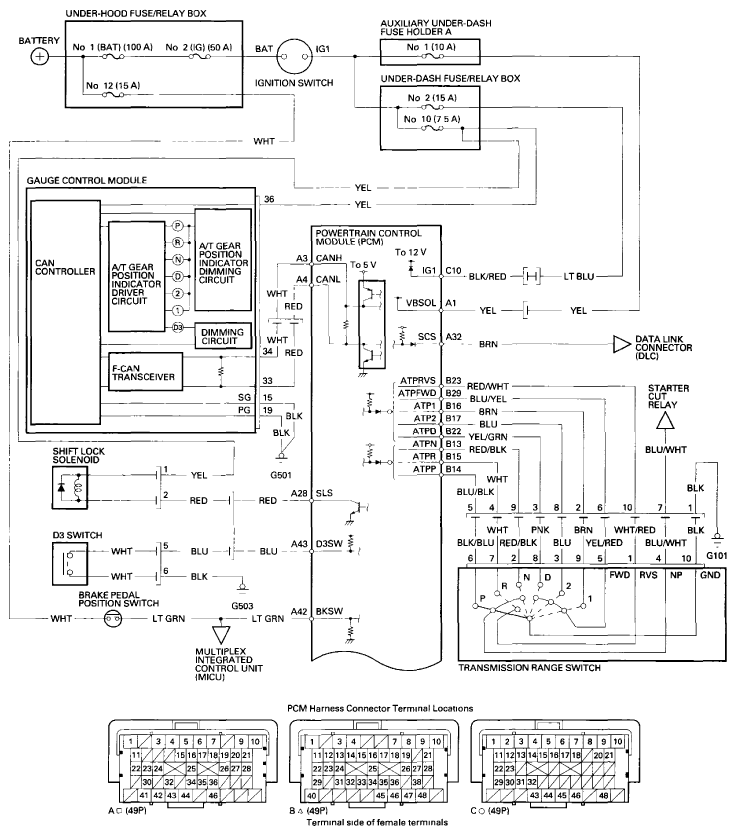

Fig 1: PCM A/T Control System - Circuit Diagram - K24Z6 Engine (1 Of 2)
G06615541Courtesy of AMERICAN HONDA MOTOR CO., INC.

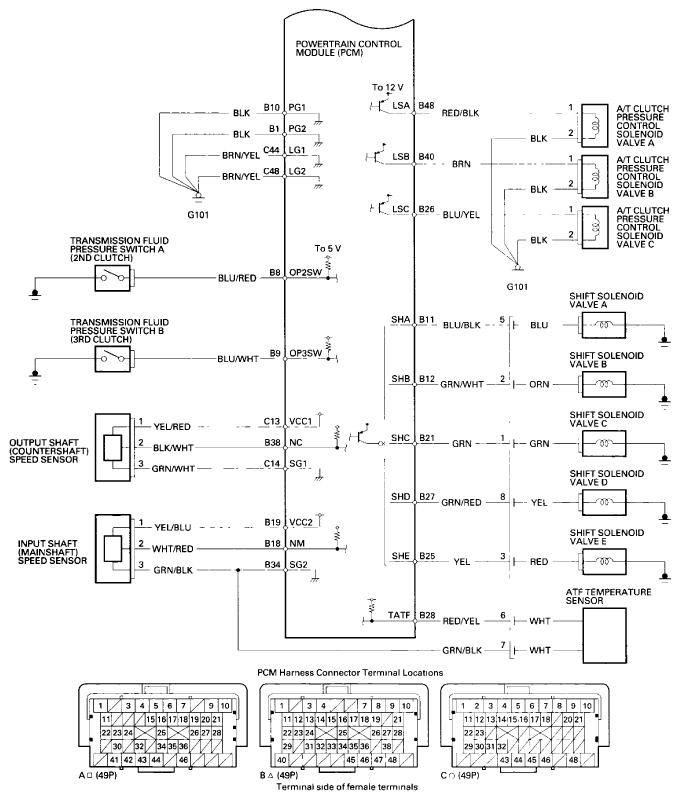

Fig 2: PCM A/T Control System - Circuit Diagram - K24Z6 Engine (1 Of 2)
G06615542Courtesy of AMERICAN HONDA MOTOR CO., INC.
