Circuit Diagram - PCM A/T Control System - K24Z1 Engine

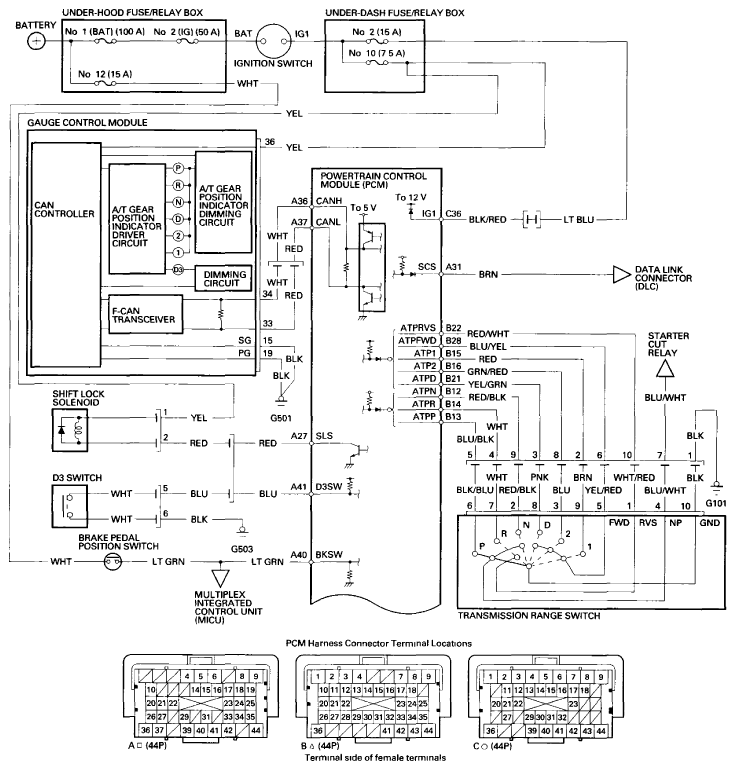

Fig 1: PCM A/T Control System - Circuit Diagram - K24Z1 Engine (1 Of 2)
G06615539Courtesy of AMERICAN HONDA MOTOR CO., INC.

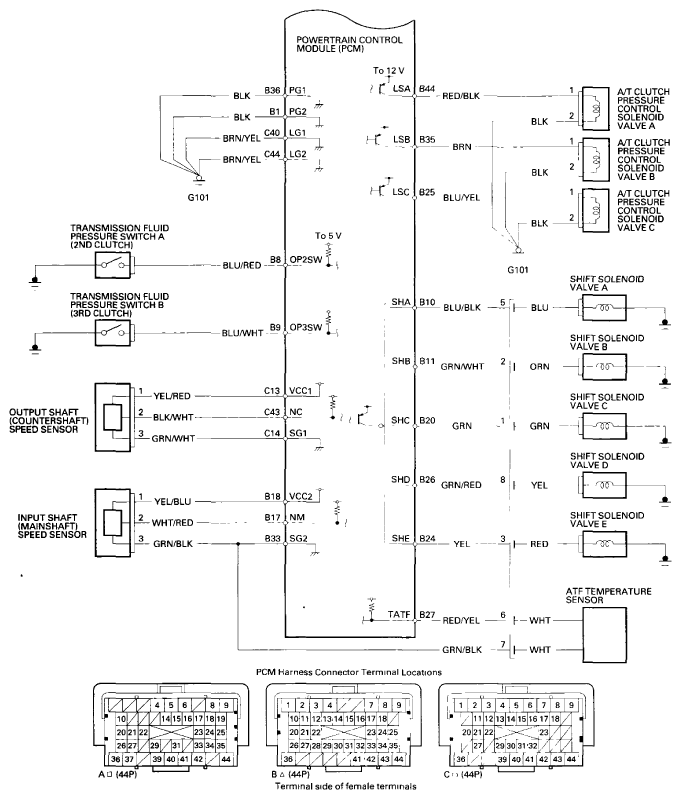

Fig 2: PCM A/T Control System - Circuit Diagram - K24Z1 Engine (2 Of 2)
G06615540Courtesy of AMERICAN HONDA MOTOR CO., INC.
