PCM A/T Control System Electrical Connections - K24Z6 Engine

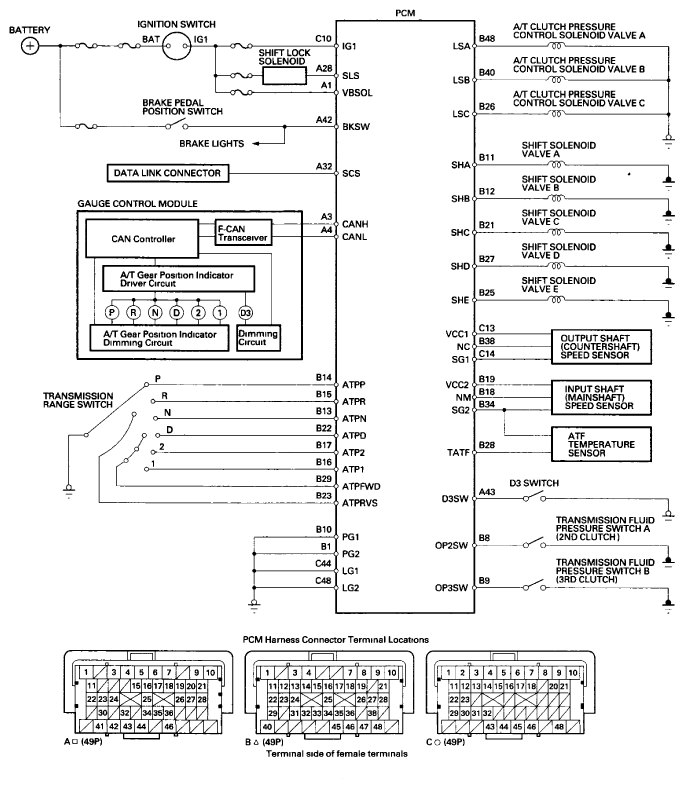

Fig 1: PCM A/T Control System Electrical Connections Diagram - K24Z6 Engine

G06615506

Courtesy of AMERICAN HONDA MOTOR CO., INC.
