DTC P0706: Open in Transmission Range Switch Circuit: Notes

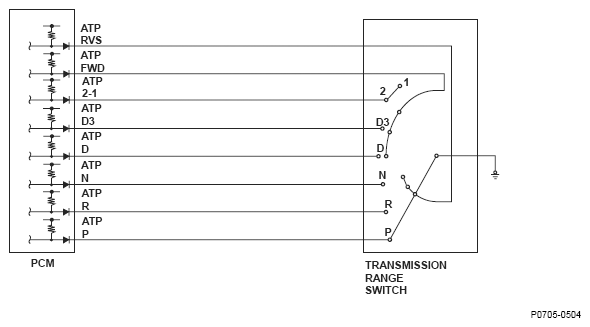

Fig 1: Transmission Range Switch Circuit Diagram

Transmission range switch contact point input matrix

Shift lever position	Input per switch
	P	R	RVS	N	D	D3	2 / 1	FWD
P	O	X	O	X	X	X	X	X
R	X	O	O	X	X	X	X	X
N	X	X	O	O	X	X	X	X
D	X	X	X	X	O	X	X	O
D3	X	X	X	X	X	O	X	O
2	X	X	X	X	X	X	O	O
1	X	X	X	X	X	X	O	X
O: Closed X: Open
