Throttle Actuator Control Module Replacement

  1. Remove the right kick panel; 2-door (see 2-DOOR - DOOR SILL AREA ), 4-door (see 4-DOOR - FRONT DOOR SILL AREA ).
  2. Disconnect the throttle actuator control module 16P connector (A).

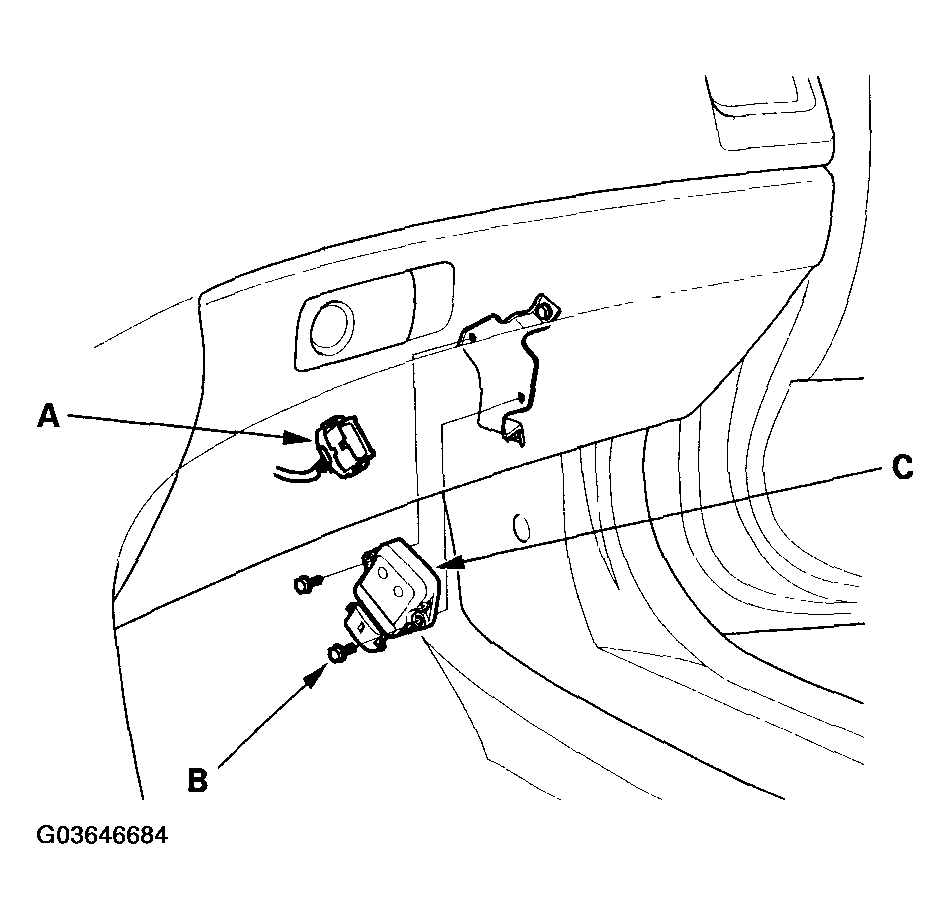

    Fig 1: Disconnecting Throttle Actuator Control Module 16P Connector
    G03646684Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B) and the throttle actuator control module (C).
  4. Install the control module in the reverse order of removal.
