Front Subframe Alignment

NOTE:
  • Before removing the subframe, make an alignment mark for the front suspension subframe rear bracket as shown below.
  • When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.
  • After mounting the subframe and brackets loosely, align the reference marks with the edge of the rear brackets then tighten all bolts.

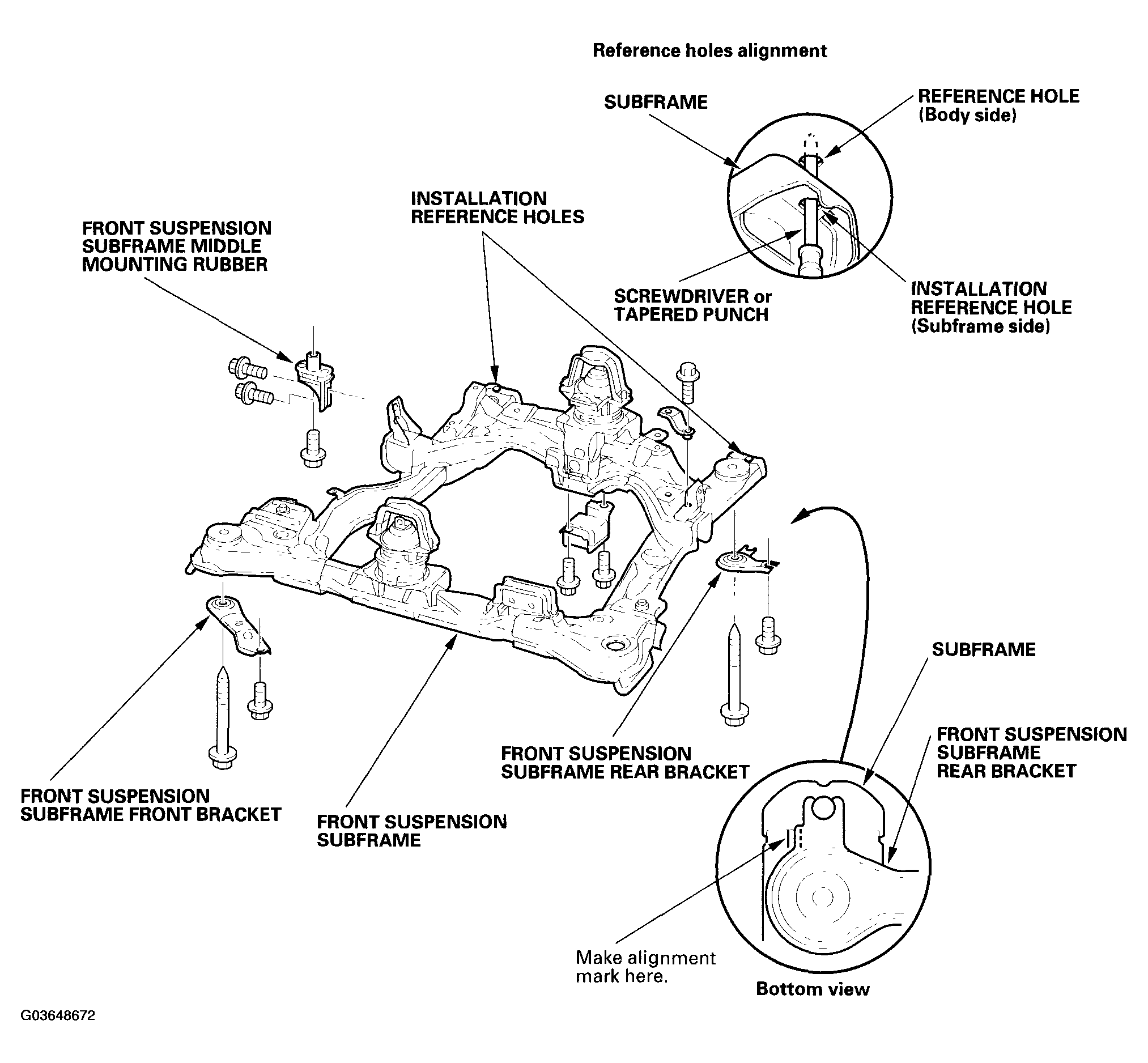

    Fig 1: Aligning Front Subframe
    G03648672Courtesy of AMERICAN HONDA MOTOR CO., INC.
