Dashboard Power Tailgate Switch (EX-L Touring Model) Connector End View

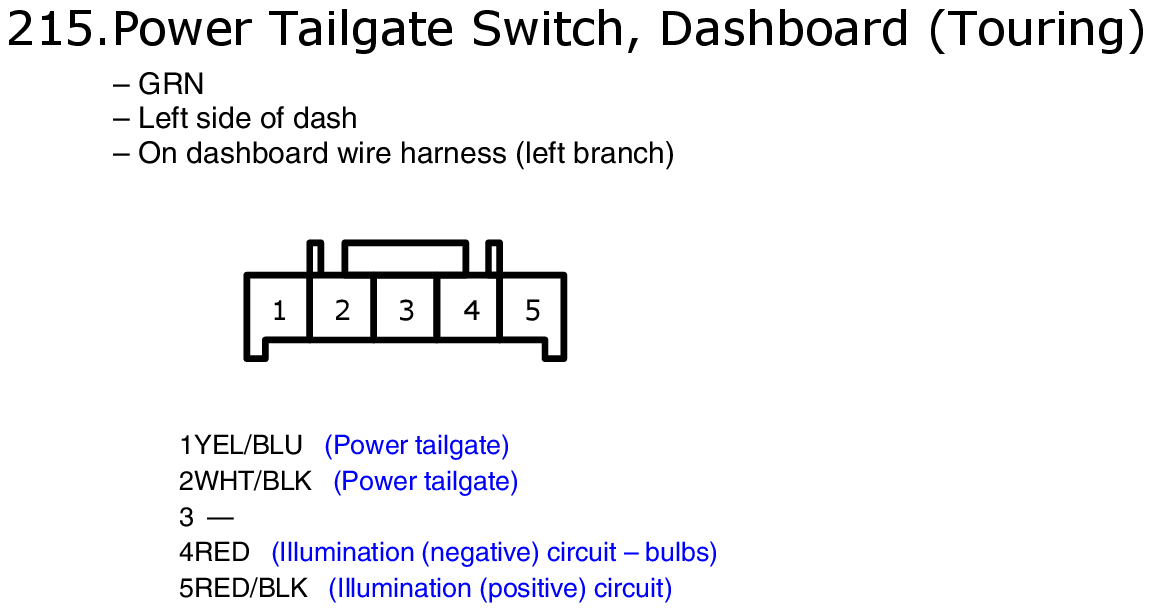

Fig 1: Dashboard Power Tailgate Switch (EX-L Touring Model) Connector End View

GHHW4635

Courtesy of AMERICAN HONDA MOTOR CO., INC.
