ABS Modulator-Control Unit (ABS) Connector End View

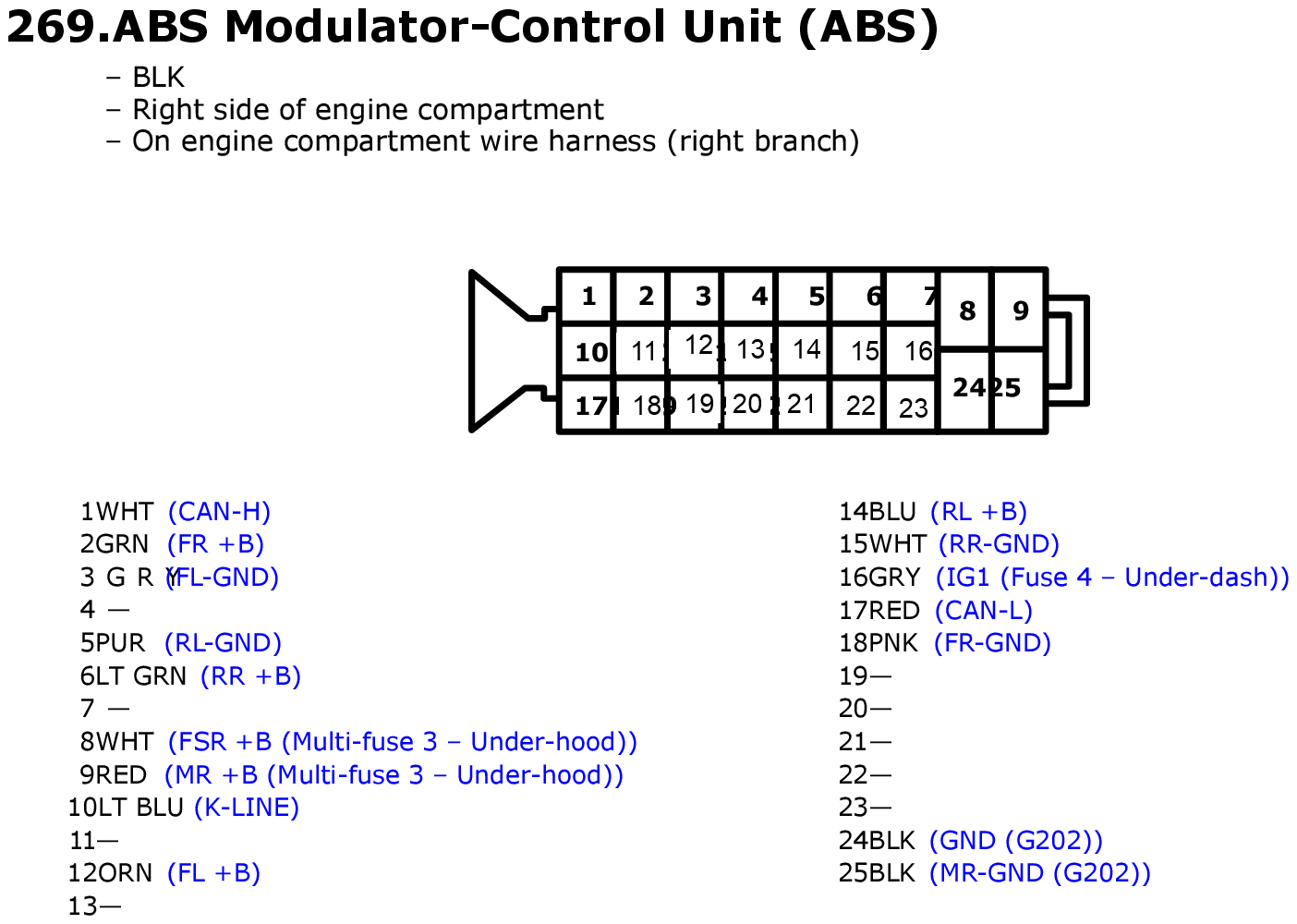

Fig 1: ABS Modulator-Control Unit (ABS) Connector End View

GHHW2047

Courtesy of AMERICAN HONDA MOTOR CO., INC.
