System Description
>>
Electronic Control System
>>
PCM Electrical Connections
PCM Electrical Connections

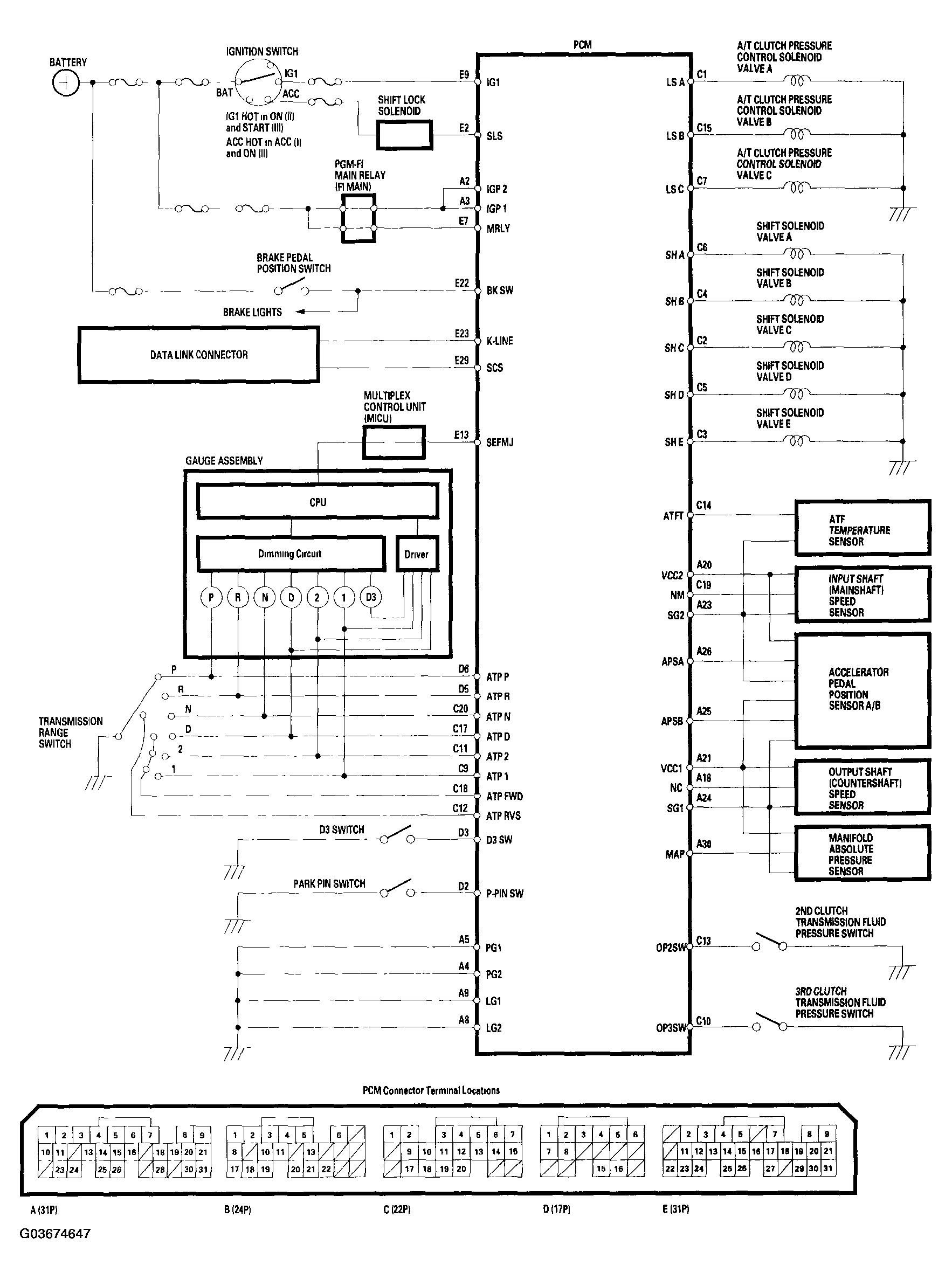

Fig 1: Automatic Transmission PCM Electrical Connections Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
