VSA Modulator-Control Unit Inputs and Outputs for 47P Connector: Notes

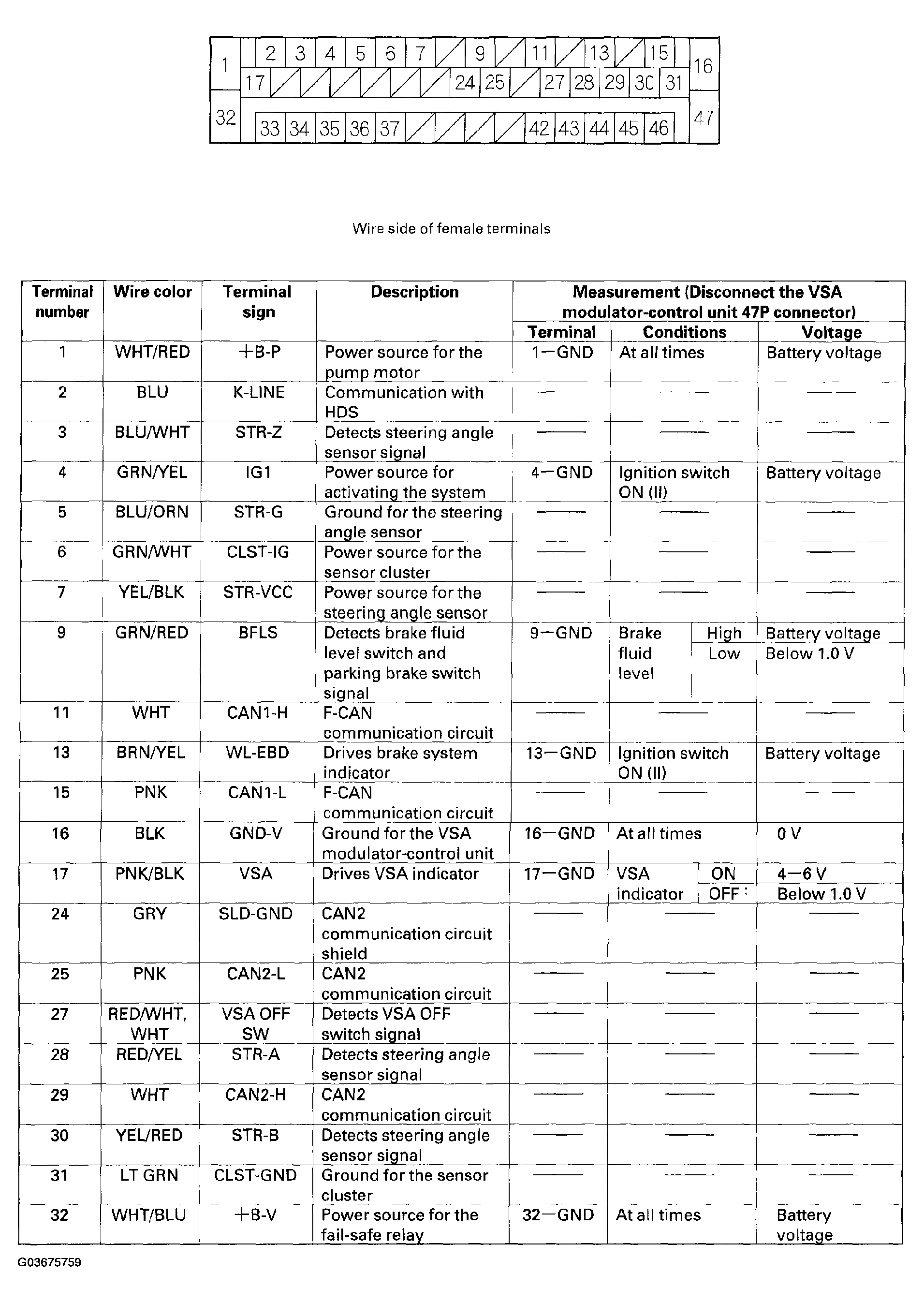

Fig 1: Identifying VSA Modulator-Control Unit 47P Connector (1 Of 2)
G03675759Courtesy of AMERICAN HONDA MOTOR CO., INC.

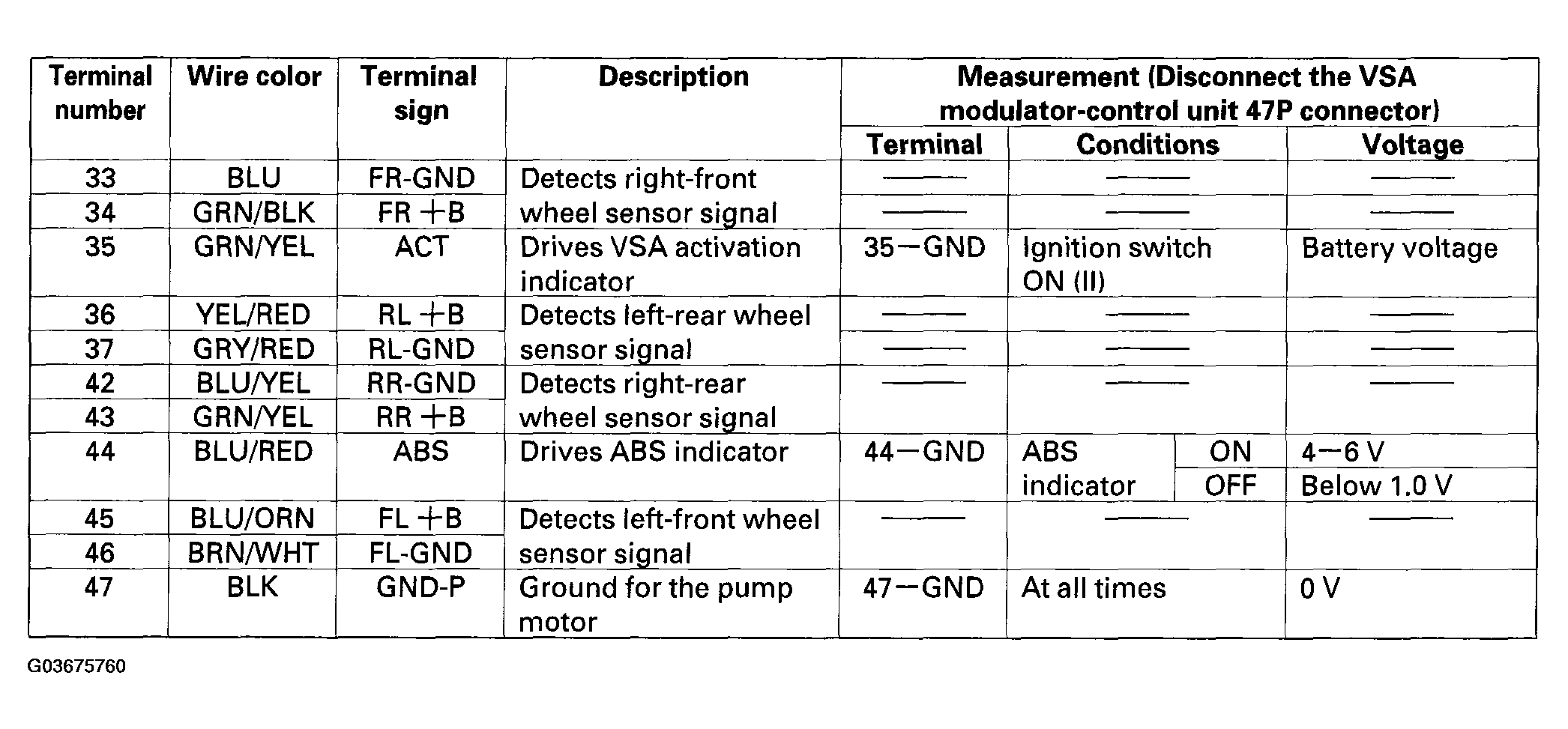

Fig 2: Identifying VSA Modulator-Control Unit 47P Connector (2 Of 2)
G03675760Courtesy of AMERICAN HONDA MOTOR CO., INC.
