Multiplex Control System: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR TERMINAL VIEWS .

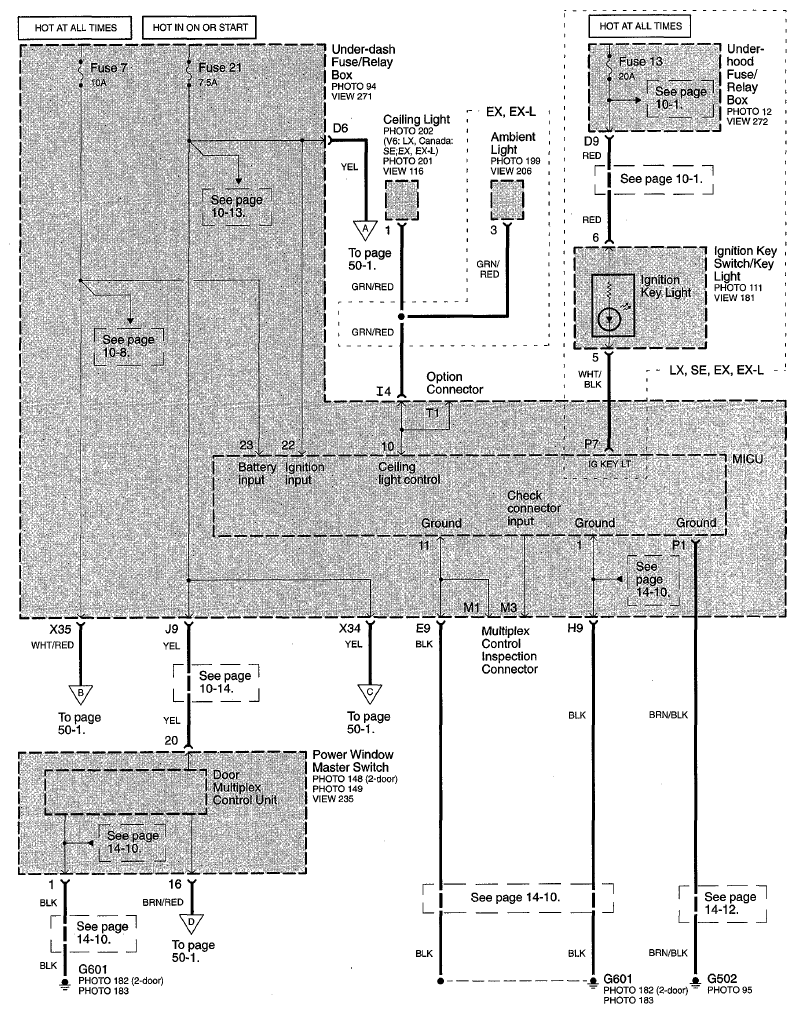

Fig 1: Multiplex Control System Circuit Diagram (Page 50)
G06849109Courtesy of AMERICAN HONDA MOTOR CO., INC.

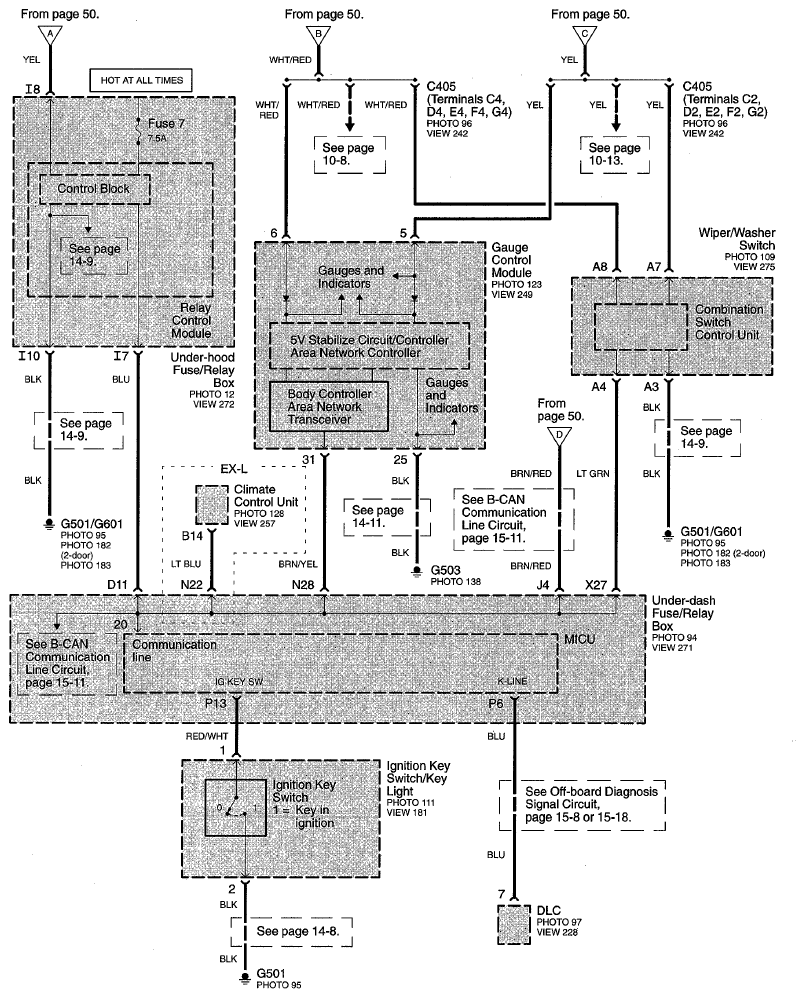

Fig 2: Multiplex Control System Circuit Diagram (Page 50-1)
G06849110Courtesy of AMERICAN HONDA MOTOR CO., INC.
