Driver's and Passenger's Switch (Without Navigation System)

  1. Remove the center lower cover (see CENTER CONSOLE REMOVAL/INSTALLATION ).

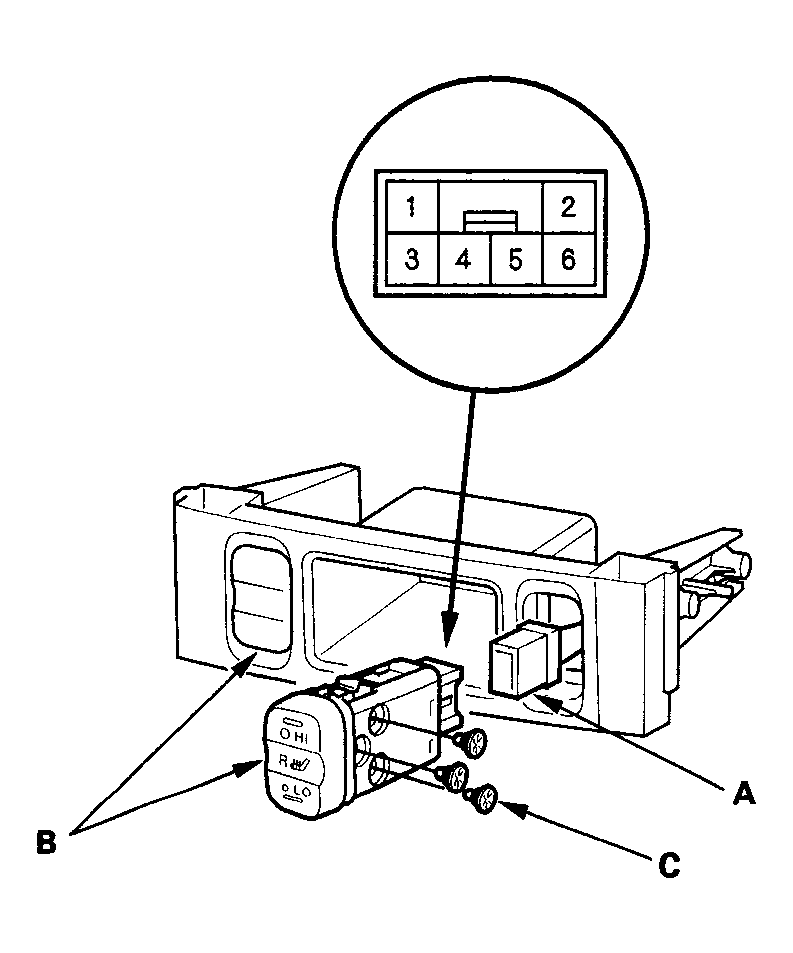

  2. Disconnect the 6P connector (A) from each seat heater switch (B), and remove the switch.
    Fig 1: Disconnecting 6P Connector From Seat Heater Switch
    G04548330Courtesy of AMERICAN HONDA MOTOR CO., INC.

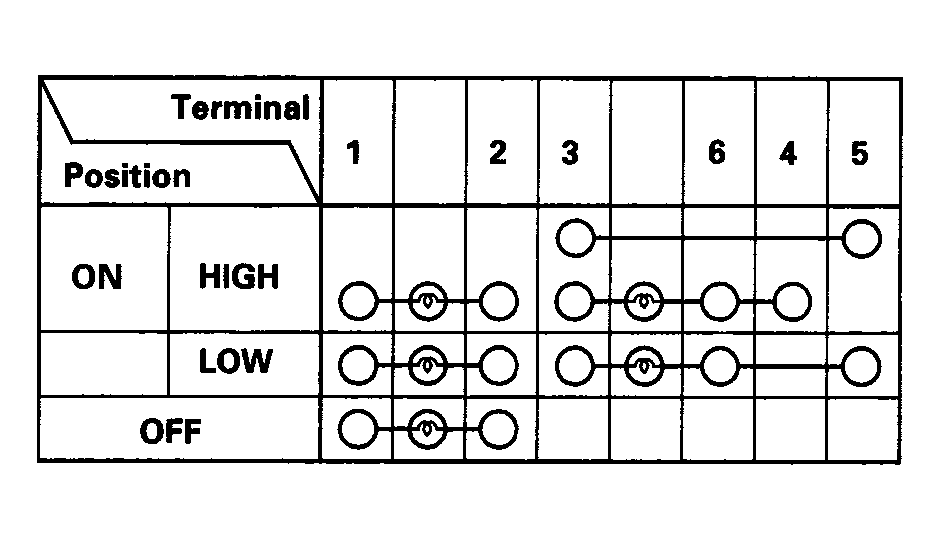

  3. Check for continuity between the terminal in each switch position according the table.
    Fig 2: Terminal Continuity Chart
    G04548331Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the switch.
  5. If any of the illumination bulbs (C) are blown, replace it.
