Right Rear Individual Map Light Connector End View

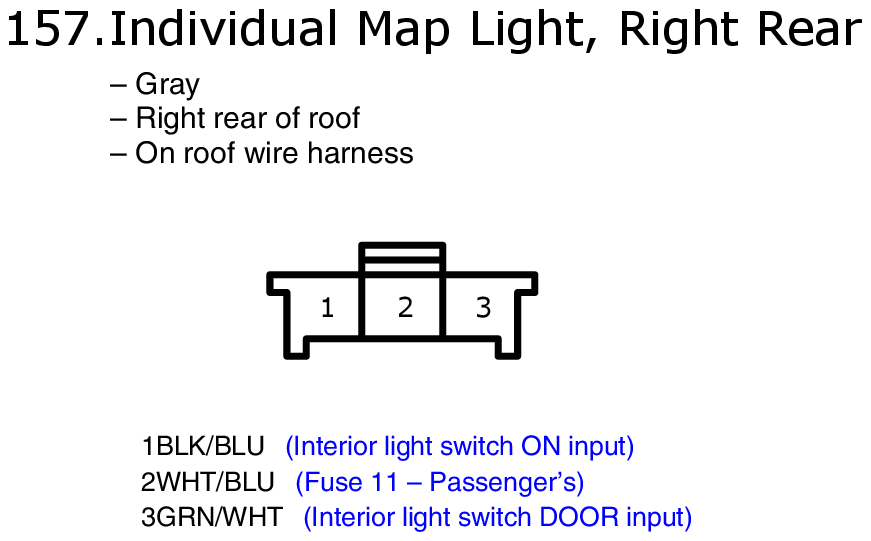

Fig 1: Right Rear Individual Map Light Connector End View

GHHW5811

Courtesy of AMERICAN HONDA MOTOR CO., INC.
