Right Middle Individual Map Light Connector End View

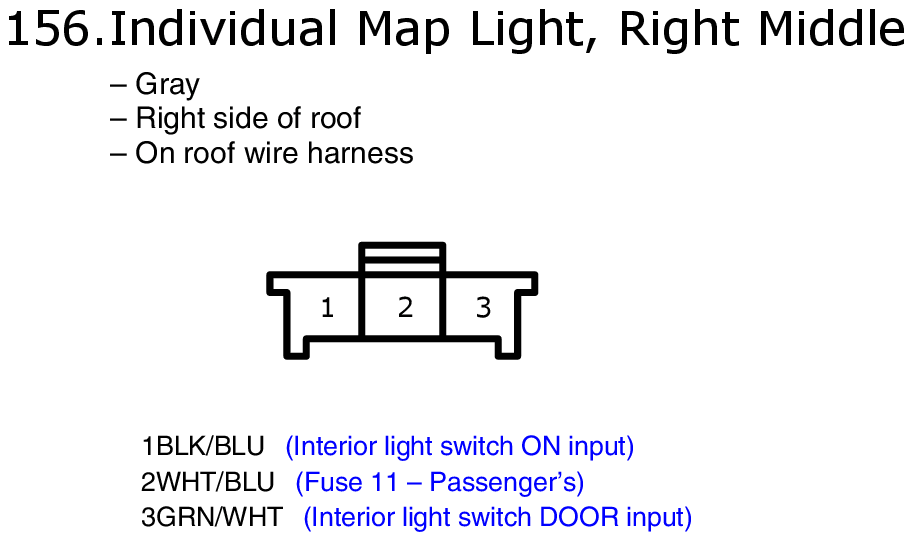

Fig 1: Right Middle Individual Map Light Connector End View

GHHW5810

Courtesy of AMERICAN HONDA MOTOR CO., INC.
