Left Front Wheel Speed Sensor (EX-L) Connector End View

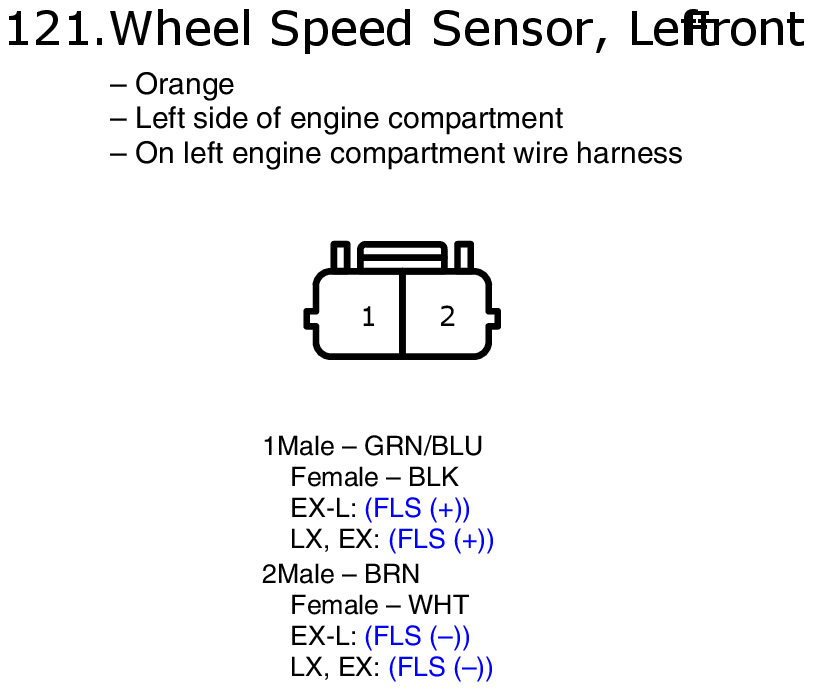

Fig 1: Left Front Wheel Speed Sensor (EX-L) Connector End View

GHHW5775

Courtesy of AMERICAN HONDA MOTOR CO., INC.
