Left Front Turn Signal/Parking Lights Connector End View

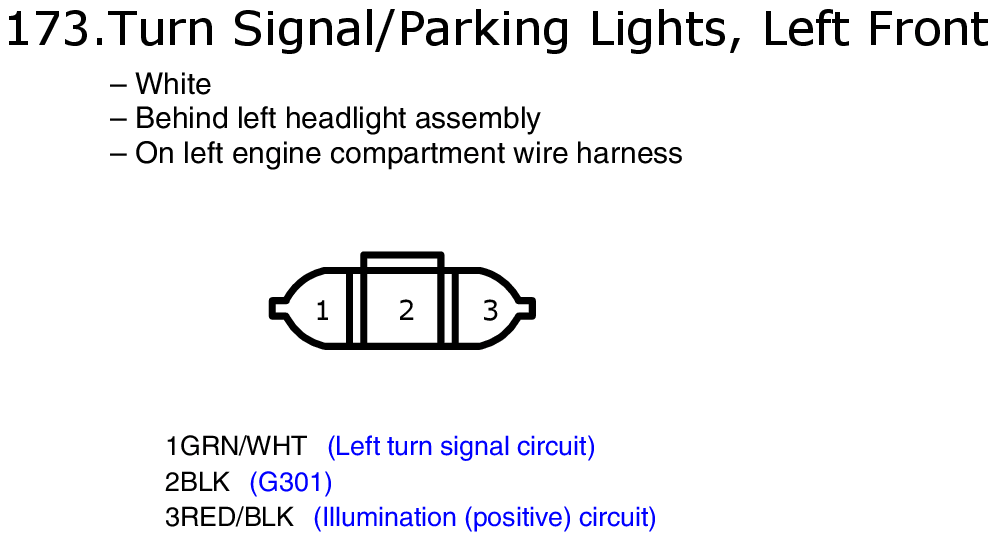

Fig 1: Left Front Turn Signal/Parking Lights Connector End View

GHHW5827

Courtesy of AMERICAN HONDA MOTOR CO., INC.
