Left Front Side Marker Light Connector End View

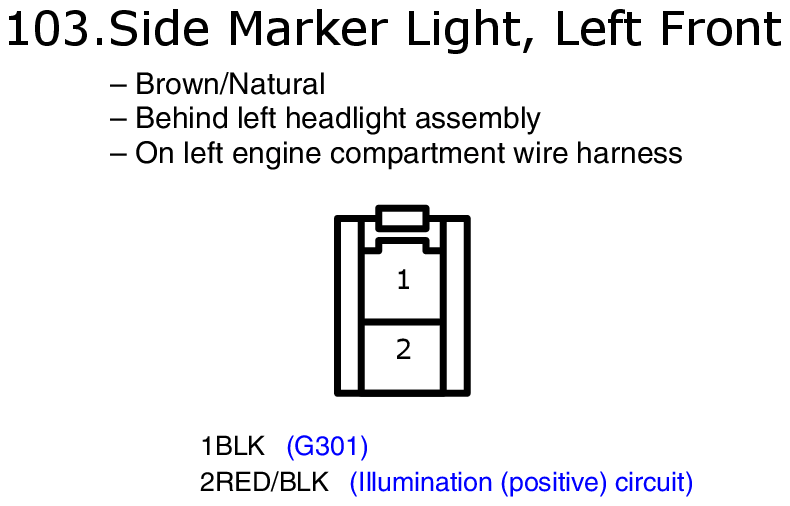

Fig 1: Left Front Side Marker Light Connector End View

GHHW5757

Courtesy of AMERICAN HONDA MOTOR CO., INC.
