Driver's Power Window Motor Connector End View

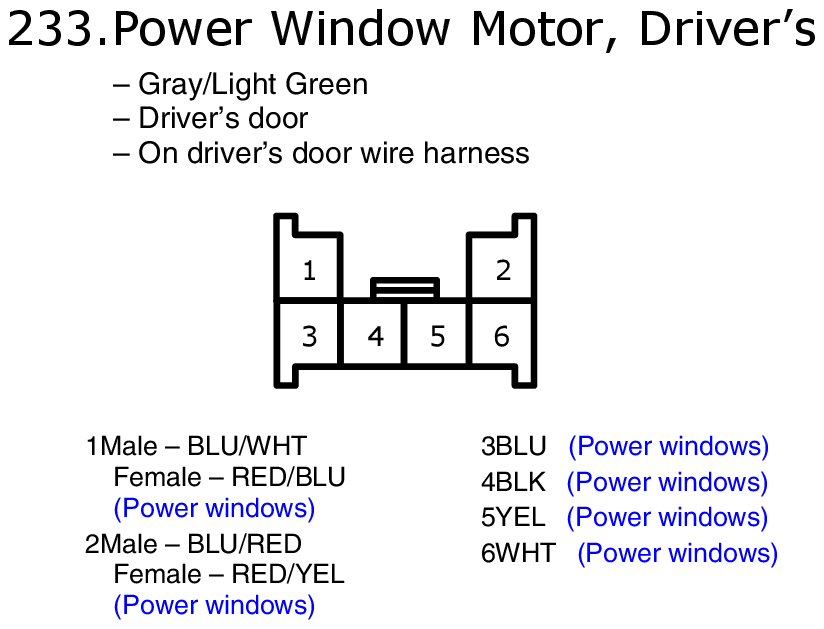

Fig 1: Driver's Power Window Motor Connector End View

GHHW5887

Courtesy of AMERICAN HONDA MOTOR CO., INC.
