Driver's Door Lock Switch Connector End View

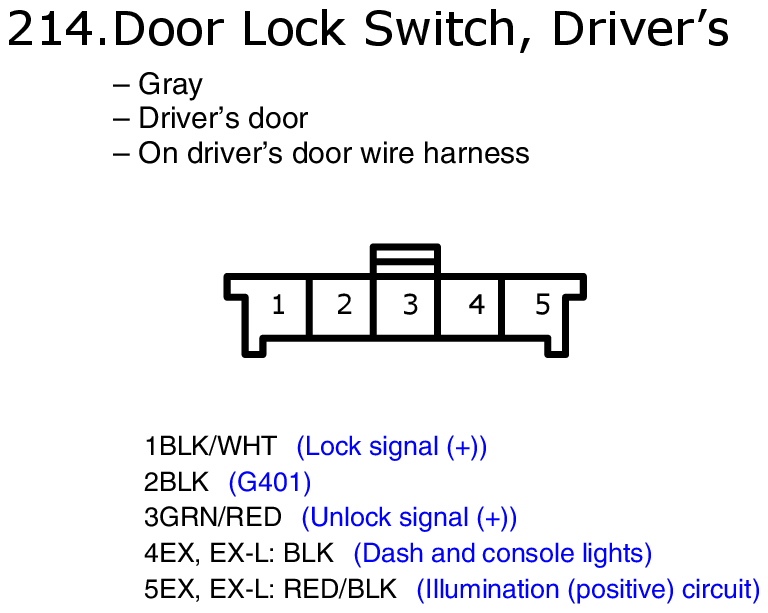

Fig 1: Driver's Door Lock Switch Connector End View

GHHW5868

Courtesy of AMERICAN HONDA MOTOR CO., INC.
