C402 Connector End View

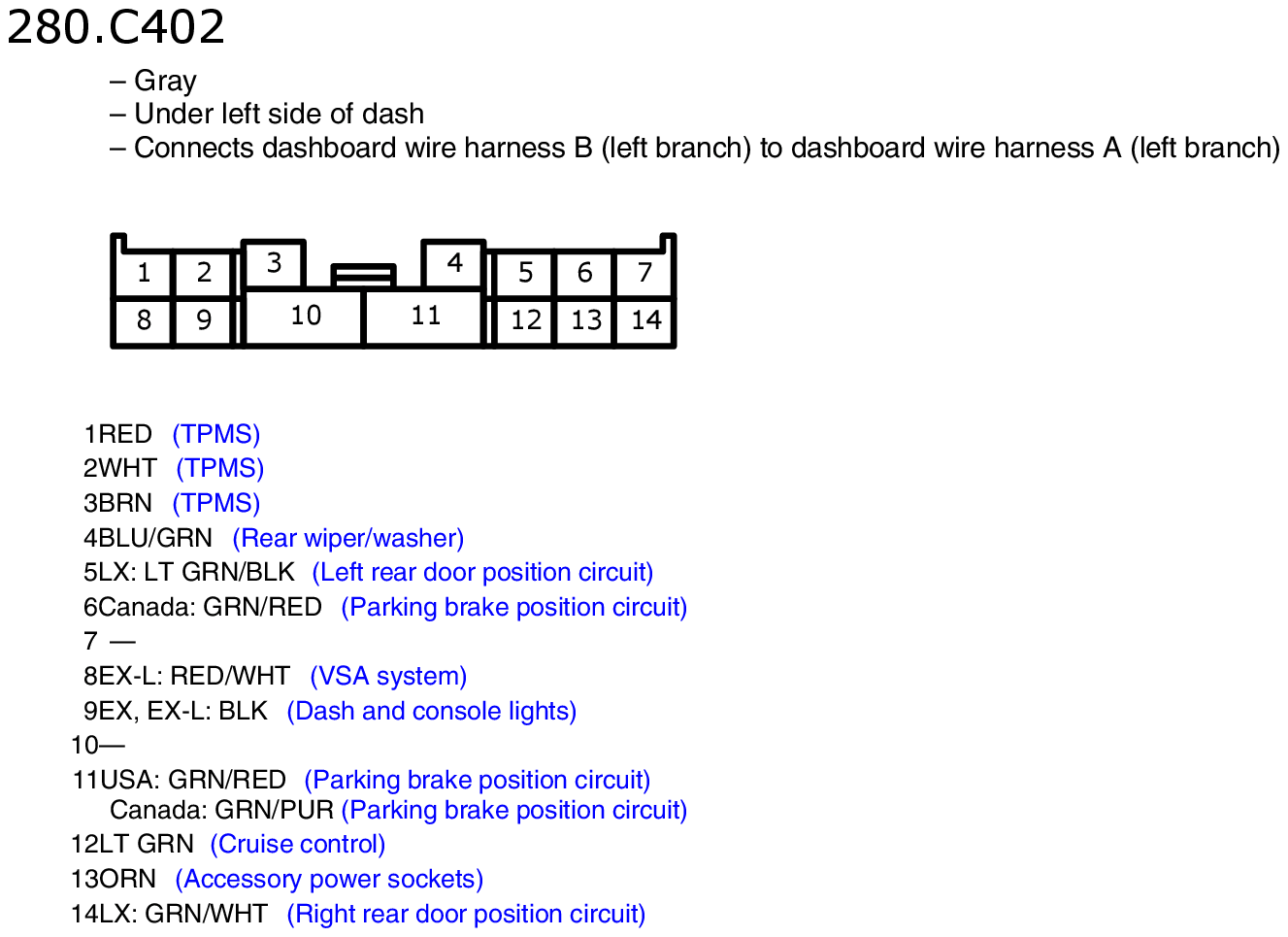

Fig 1: C402 Connector End View

GHHW5934

Courtesy of AMERICAN HONDA MOTOR CO., INC.
