C205 Connector End View

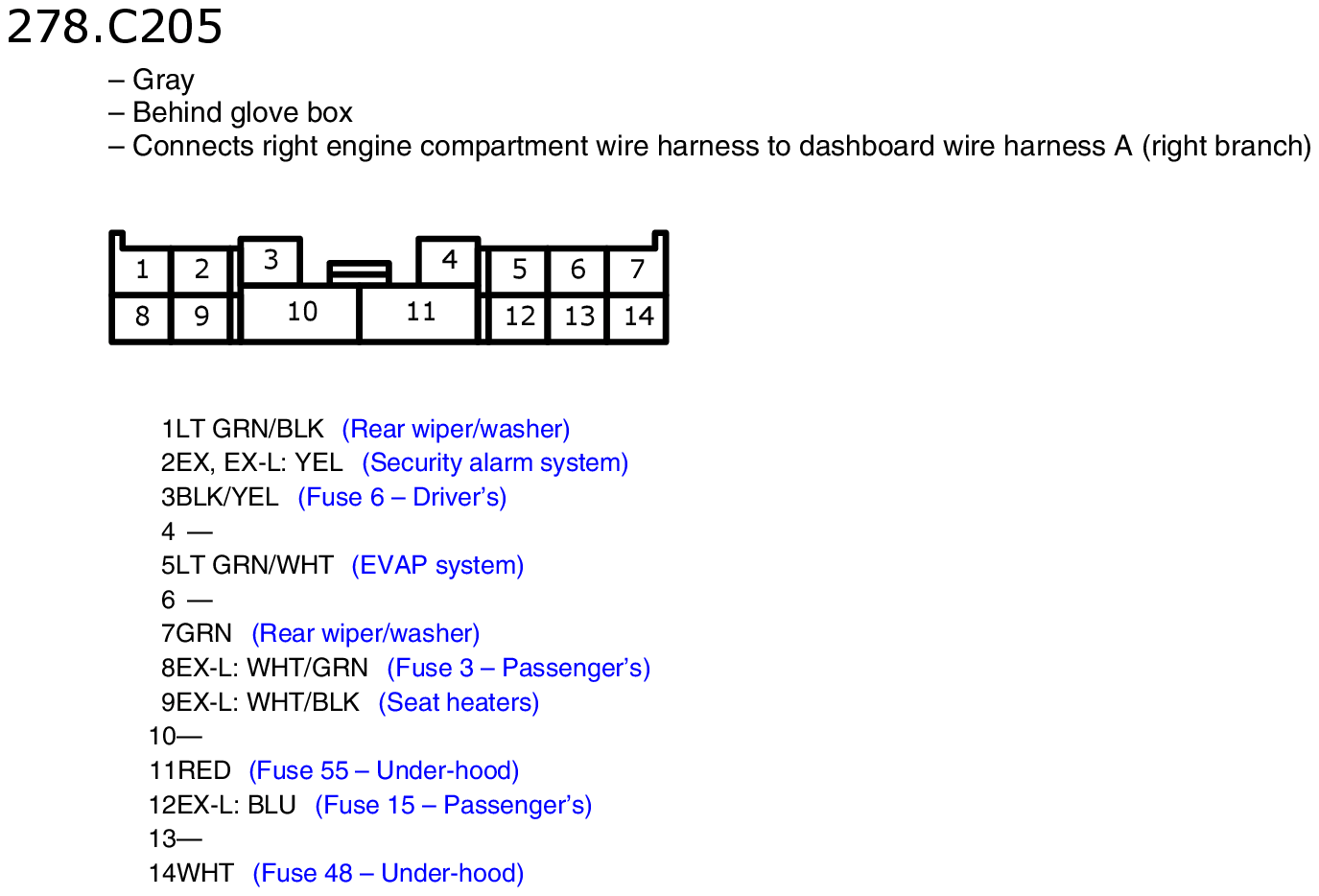

Fig 1: C205 Connector End View

GHHW5932

Courtesy of AMERICAN HONDA MOTOR CO., INC.
