Air Fuel Ratio (A/F) Sensor

The A/F Sensor operates over a wide air/fuel range. The A/F Sensor is installed upstream of the WU-TWC, and sends signals to the PCM which varies the duration of fuel injection accordingly.

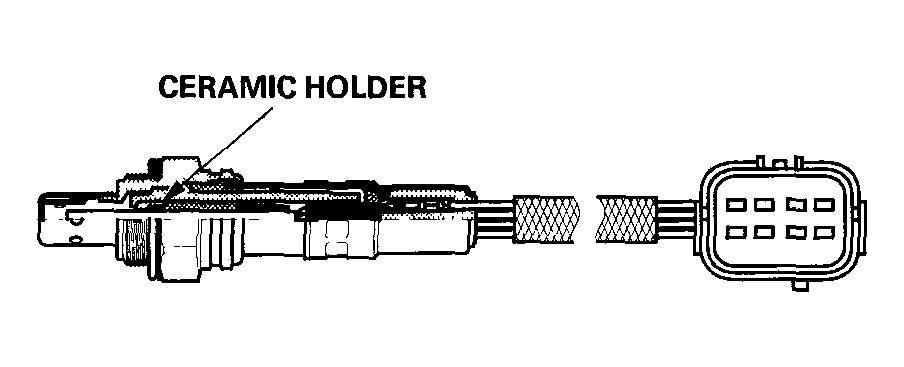

Fig 1: Identifying Air Fuel Ratio Sensor
G04545850Courtesy of AMERICAN HONDA MOTOR CO., INC.
