Wiper Motor Replacement: Windshield

Remove the nuts (A) and the windshield wiper arms (B).

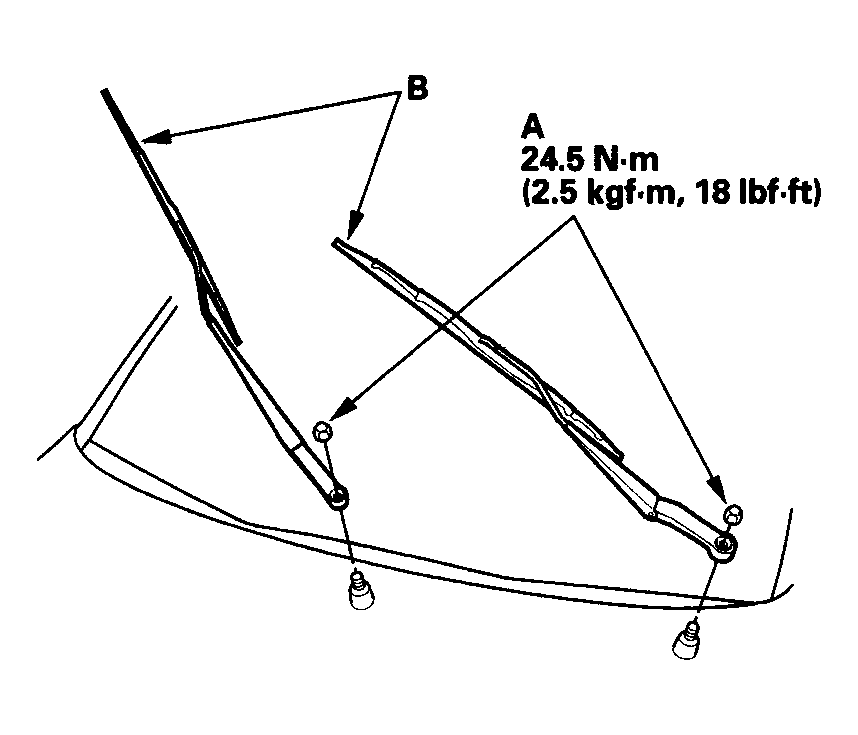

Fig 1: Removing Nuts (A) And Windshield Wiper Arms (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hood seal (A) and cowl covers (B).

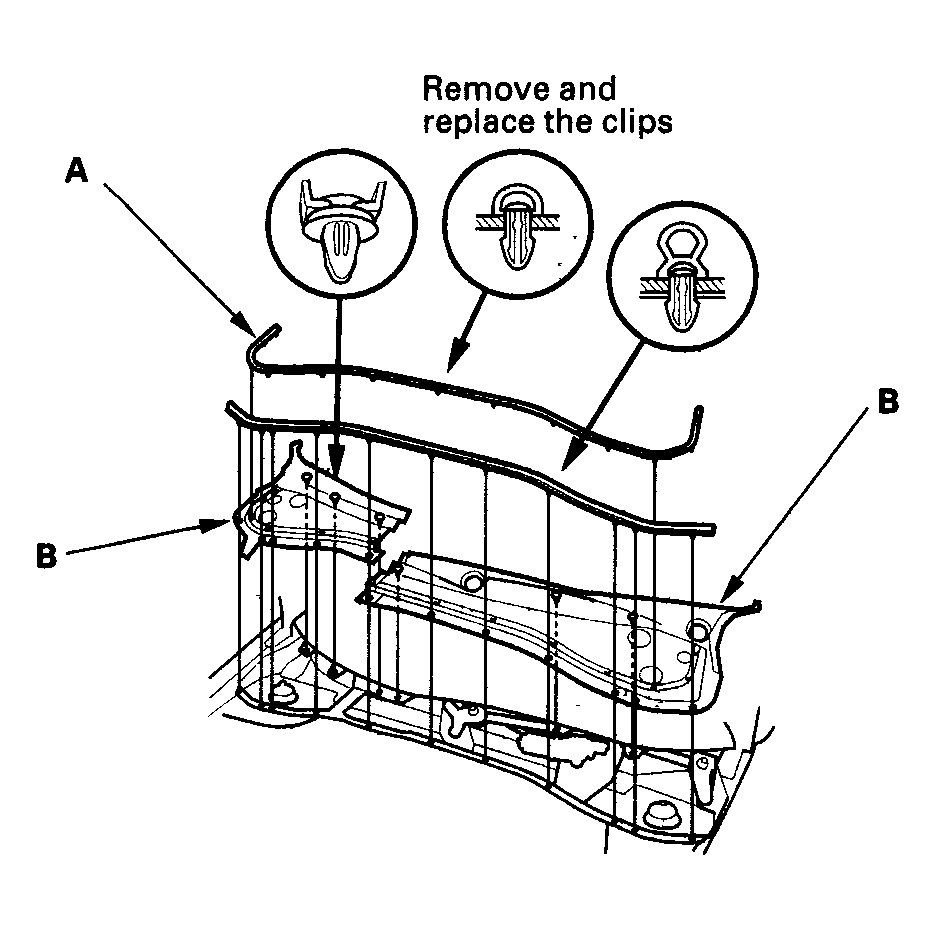

Fig 2: Removing Hood Seal (A) And Cowl Covers (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 5P connector (A) from the windshield wiper motor (B).

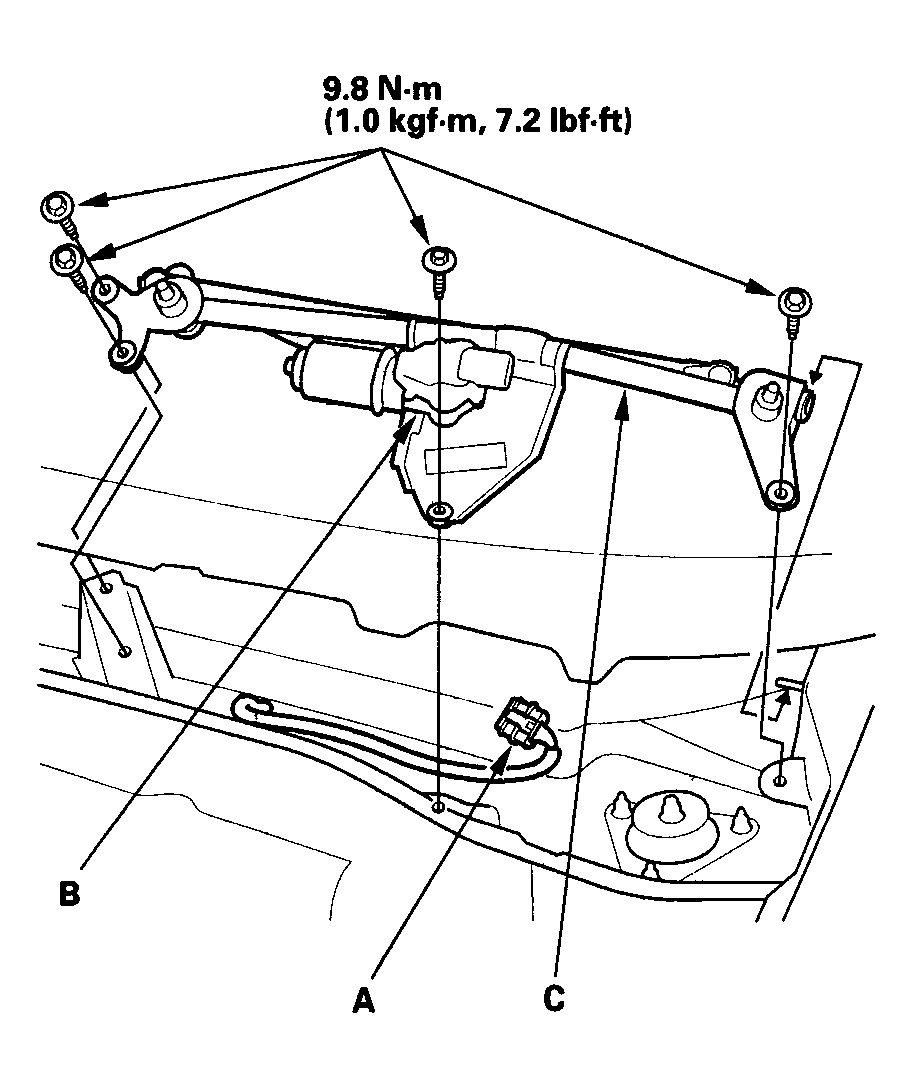

Fig 3: Disconnecting 5P Connector (A) From Windshield Wiper Motor (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the mounting bolts and the wiper linkage assembly (C).
Scribe a line (A) across the link and windshield wiper linkage to show the original adjustment. Separate the windshield wiper linkage (B) from the wiper motor (C).

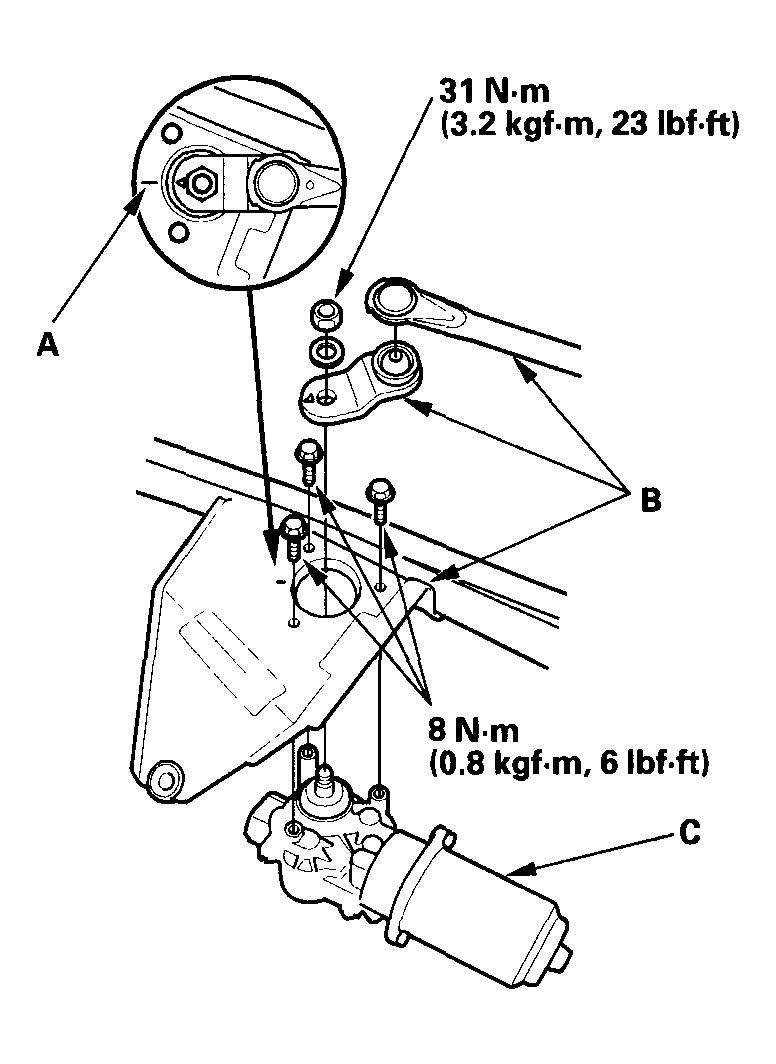

Fig 4: Separating Windshield Wiper Linkage (B) From Wiper Motor (C)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and note these items:
- Apply multipurpose grease to the moving parts.
- Before reinstalling the wiper arms, turn the wiper switch ON, then OFF to return the wiper shafts to the park position.
- If necessary, replace any damaged clips.
- Make sure the wiper motor operates properly.
