System Structure: Wheels

TPMS will not work unless TPMS type wheels are installed on the vehicle. The original equipment wheels have a "TPMS" mark on them (A), and a counterweight (B) cast into the opposite side of the spoke to balance the weight of the sensor (C).

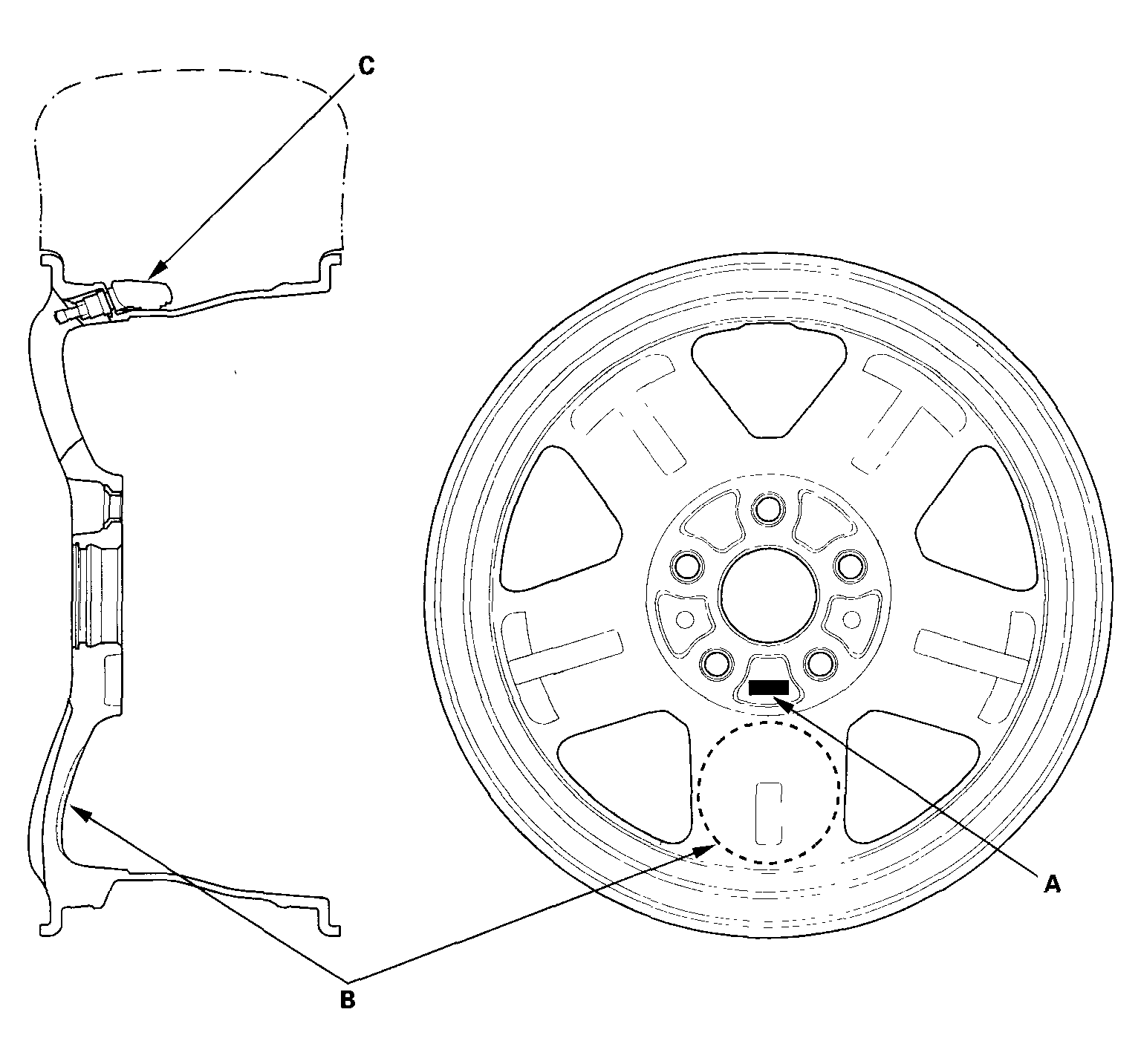

Fig 1: Identifying "TPMS" Mark On Tire (A), Counterweight (B) And Sensor (C)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
