How to Retrieve TPMS DTCs

With the ignition switch OFF, connect the HDS (Honda Diagnostic System) to the 16P data link connector (DLC) (A) under the right side of the driver's dashboard.

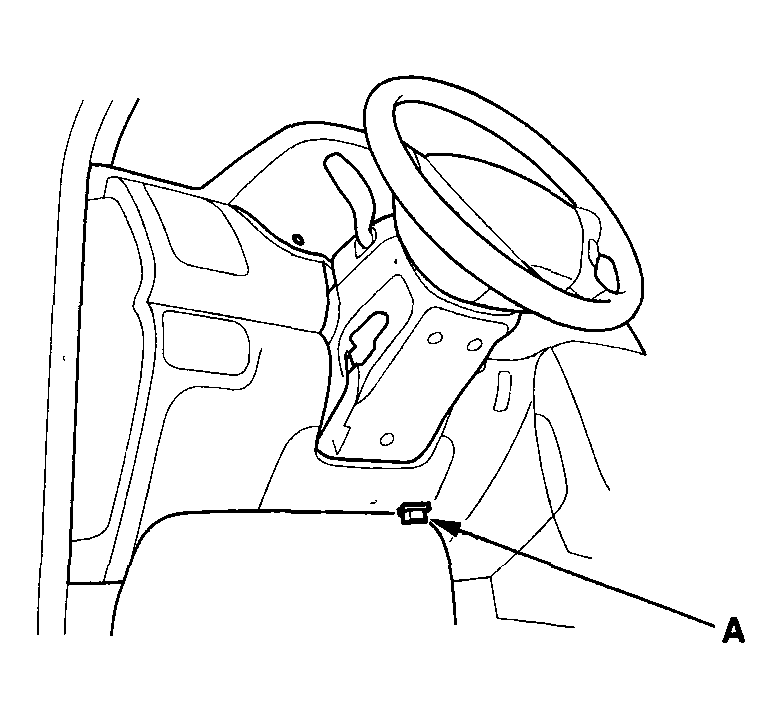

Fig 1: Identifying 16P Data Link Connector (A)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch ON (II), and follow the prompts on the HDS to retrieve any DTC(s) and display them on the screen. Refer to the TROUBLESHOOTING PROCEDURE(S) for the DTC(s) listed.
NOTE: See the HDS Help menu for specific instructions.
