Parking/Back-Up Sensor Control Unit (Touring) Connector End View

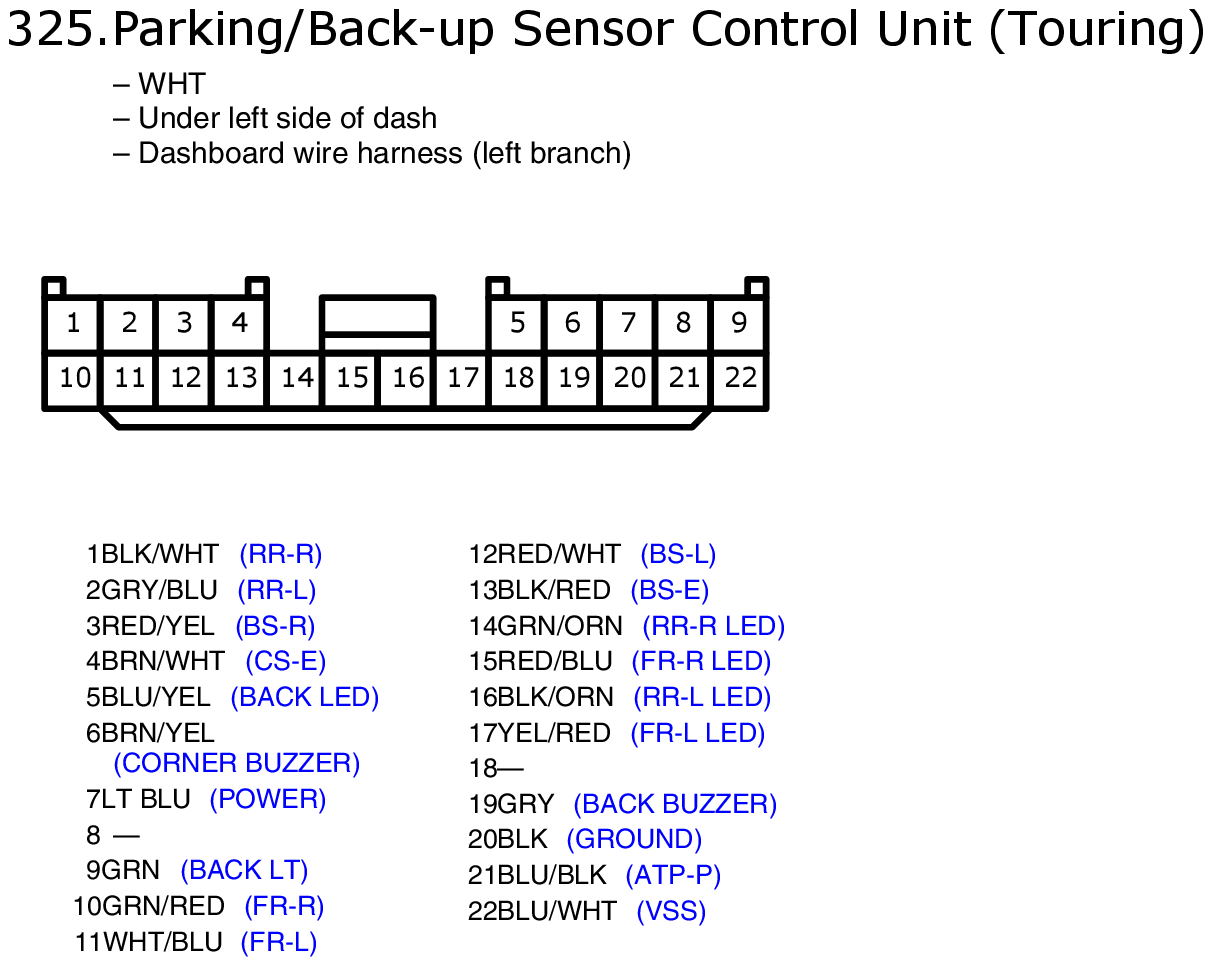

Fig 1: Parking/Back-Up Sensor Control Unit (Touring) Connector End View

GHHW4745

Courtesy of AMERICAN HONDA MOTOR CO., INC.
