Fan Control Relay And DRL Relay Connector End View

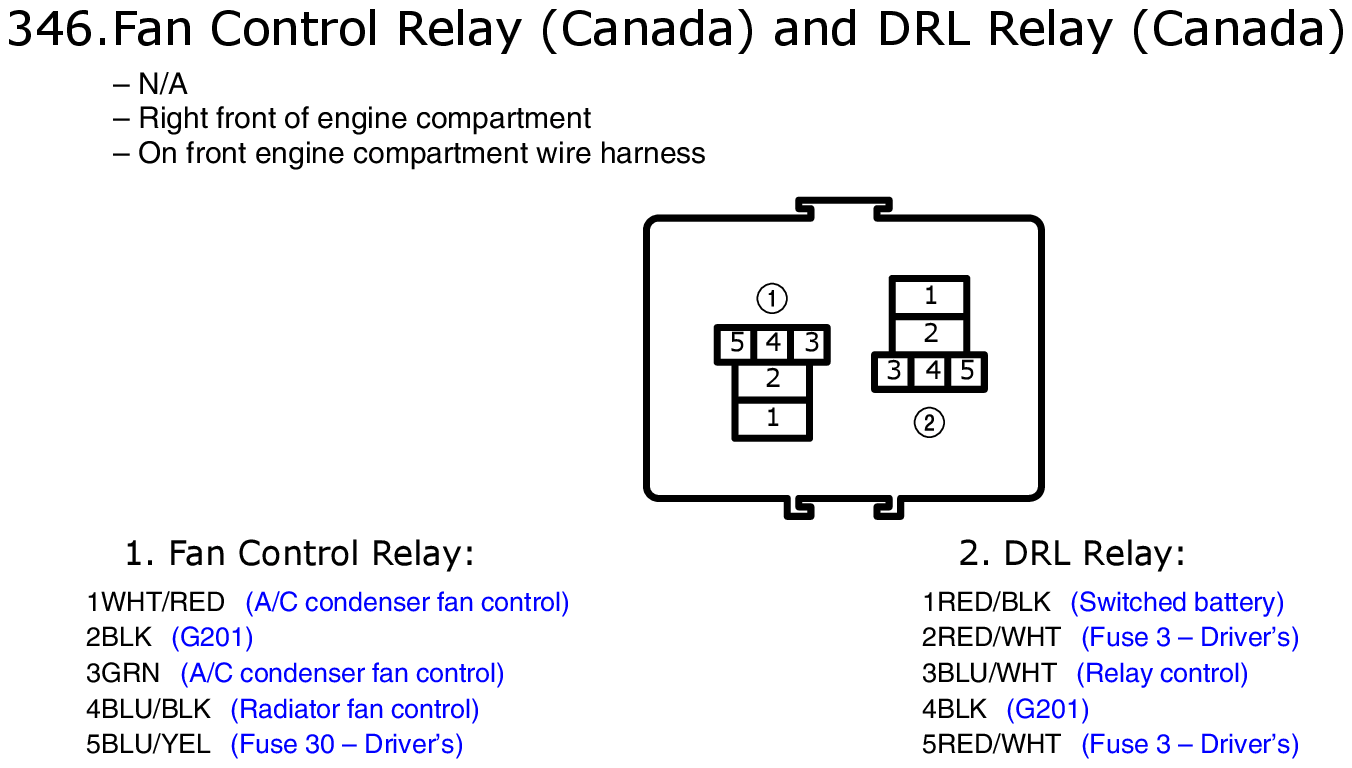

Fig 1: Fan Control Relay And DRL Relay Connector End View

GHHW4766

Courtesy of AMERICAN HONDA MOTOR CO., INC.
