Automatic Lighting Control Unit (EX-L Touring model) Connector End View

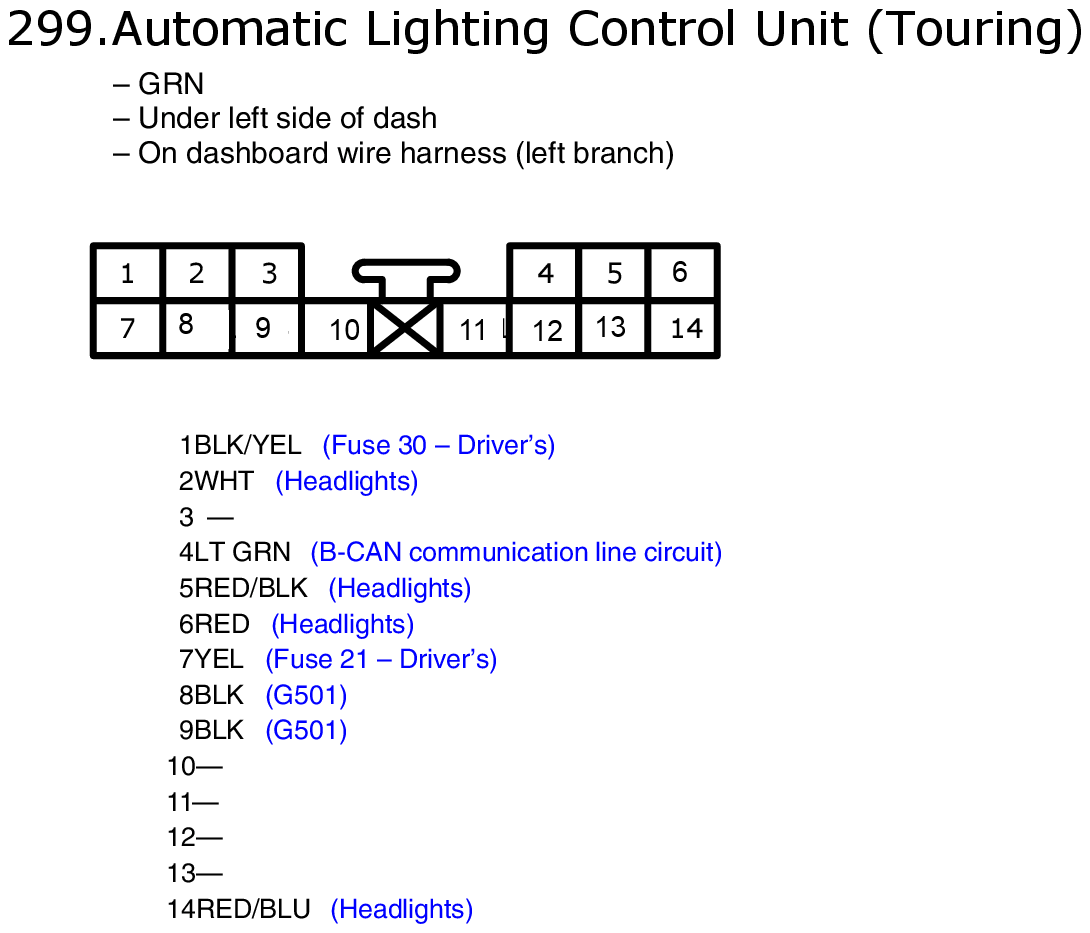

Fig 1: Automatic Lighting Control Unit (EX-L Touring model) Connector End View

GHHW4719

Courtesy of AMERICAN HONDA MOTOR CO., INC.
