Fuel Tank Pressure (FTP) Sensor

The FTP sensor converts fuel tank absolute pressure into an electrical input to the PCM.

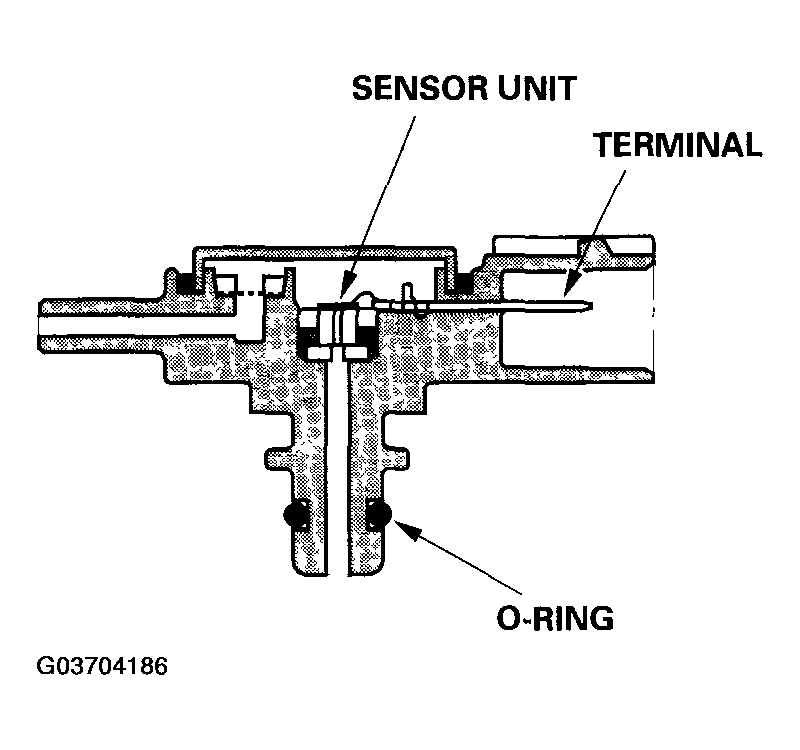

Fig 1: Identifying FTP Sensor

G03704186

Courtesy of AMERICAN HONDA MOTOR CO., INC.
