ECM/PCM Data

You can retrieve data from the ECM/PCM by connecting the HDS or a scan tool to the data link connector (DLC). The items listed in the table below conform to SAE recommended practice. The HDS also reads data beyond that recommended by SAE to help you find the causes of intermittent problems.

NOTE:
  • The "operating values" listed are approximate and may vary depending on the environment and the individual vehicle.
  • Unless noted otherwise, "at idle speed" means idling with the engine completely warmed up, A/T and CVT in the Park or neutral, M/T in neutral position, and the A/C and all accessories turned off.

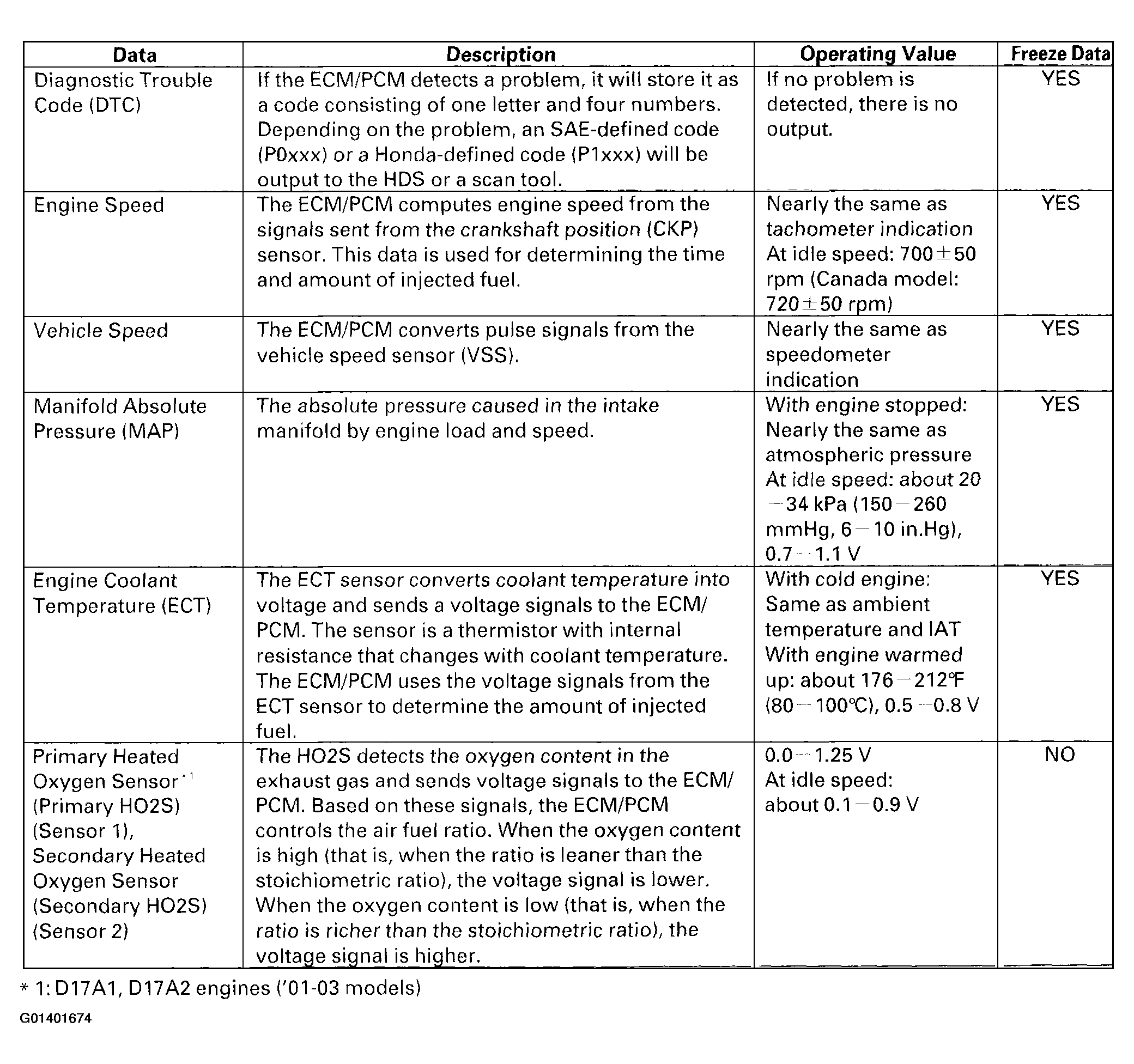

Fig 1: ECM/PCM Data Chart (1 Of 2)
G01401674Courtesy of AMERICAN HONDA MOTOR CO., INC.

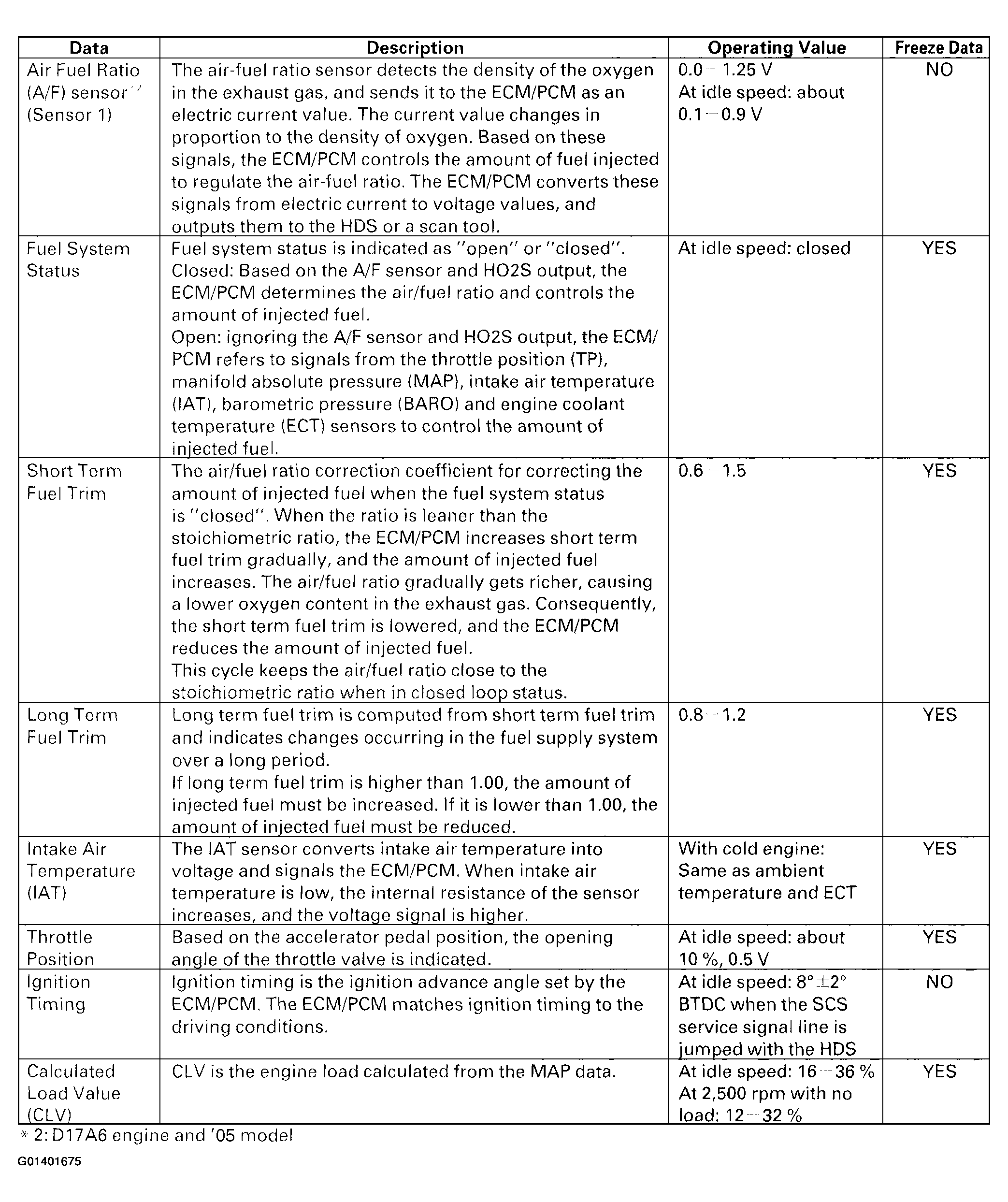

Fig 2: ECM/PCM Data Chart (2 Of 2)
G01401675Courtesy of AMERICAN HONDA MOTOR CO., INC.
