PCU (Power Control Unit)

The PCU consists of the motor drive module (MDM), the DC-DC converter, and a heat sink that cools these units. These components are integrated into a single, compact unit. The fan circulates air over the heat sink and cools the MDM and the DC-DC converter.

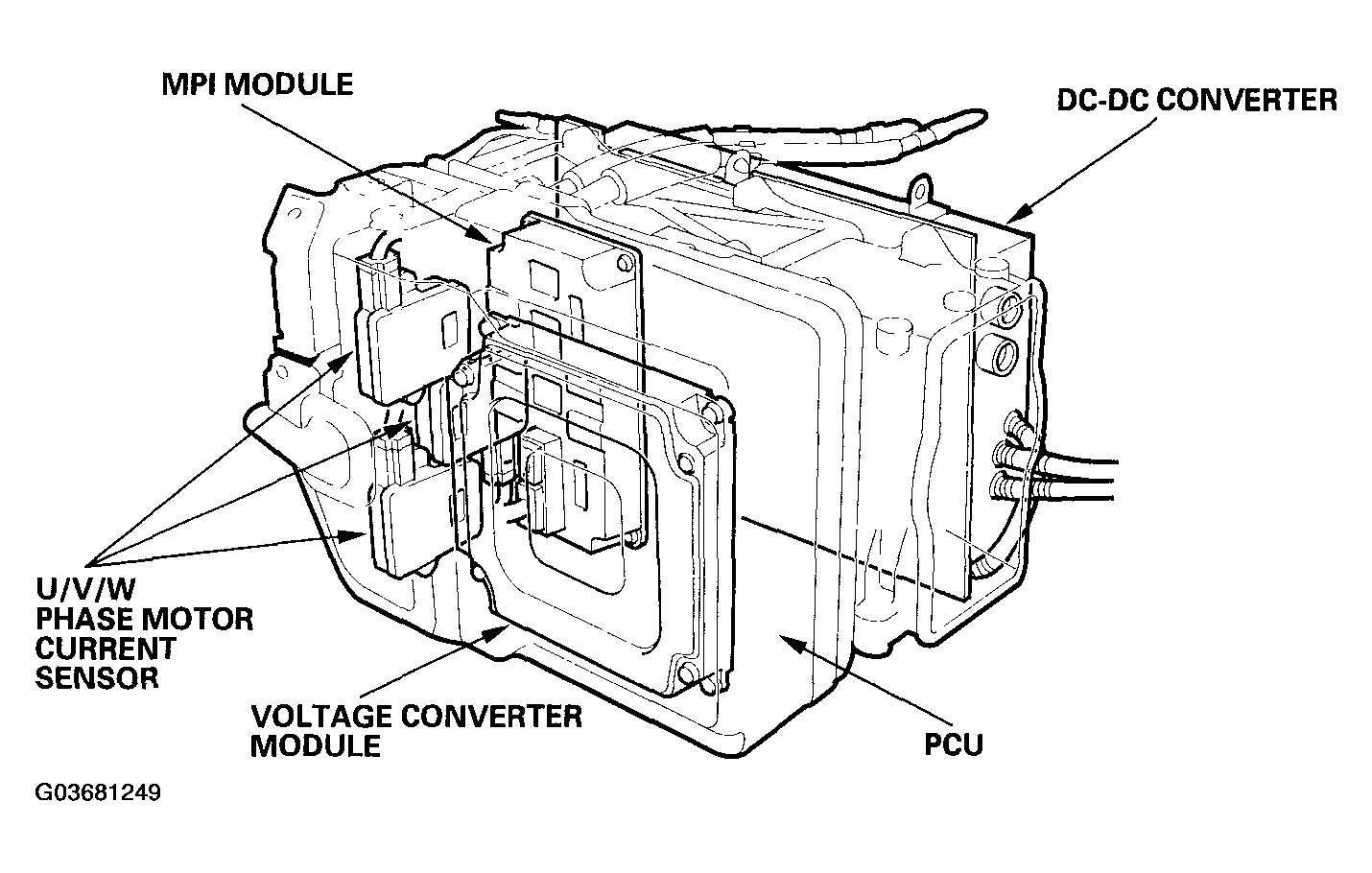

Fig 1: Identifying PCU
G03681249Courtesy of AMERICAN HONDA MOTOR CO., INC.
