Tailgate Latch Switch, Left Connector End View

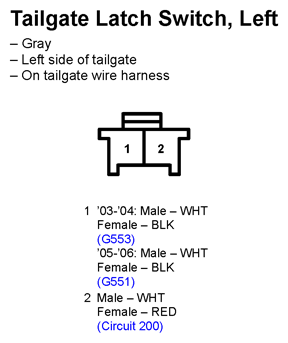

Fig 1: Tailgate Latch Switch, Left Connector End View

G11249887

Courtesy of AMERICAN HONDA MOTOR CO., INC.
