Security Control Unit (Honda Accessory) Connector End View

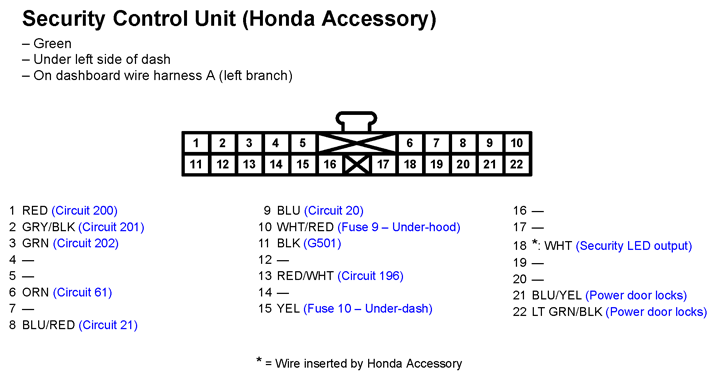

Fig 1: Security Control Unit (Honda Accessory) Connector End View

G11250008

Courtesy of AMERICAN HONDA MOTOR CO., INC.
