Door Lock Switch, Driver's Connector End View

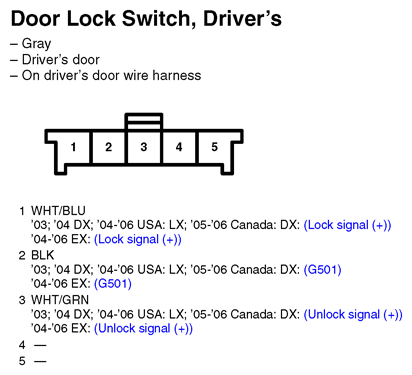

Fig 1: Door Lock Switch, Driver's Connector End View

G11249951

Courtesy of AMERICAN HONDA MOTOR CO., INC.
