ABS Modulator-Control Unit (EX; '06) Connector End View

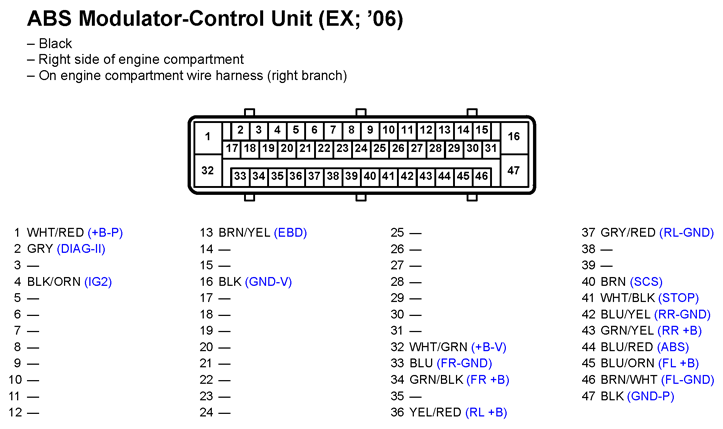

Fig 1: ABS Modulator-Control Unit (EX; '06) Connector End View

G11250012

Courtesy of AMERICAN HONDA MOTOR CO., INC.
