Total Starting Torque Measurement

  1. 3) Rotate the companion flange several times to seat the tapered roller bearing.
  2. 4. Measure the starting torque (companion flange side) using a torque wrench.
    NOTE: To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

    Standard:

    2.16-3.57 N.m

    (22.0-36.4 kgf.cm, 19.1-31.6 lbf.in)

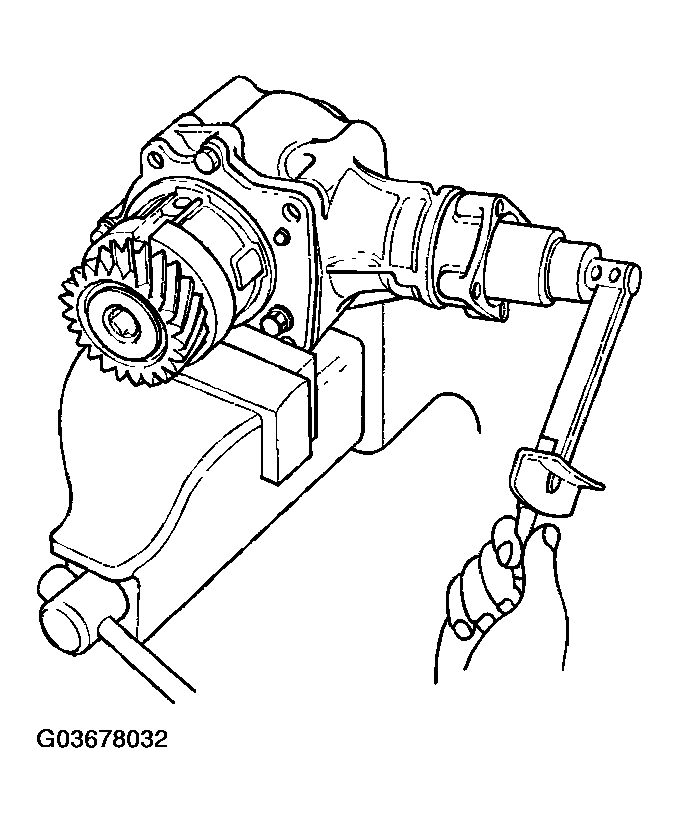

    Fig 1: Measuring Companion Flange Starting Torque
    G03678032Courtesy of AMERICAN HONDA MOTOR CO., INC.
