Fluid Leakage Inspection

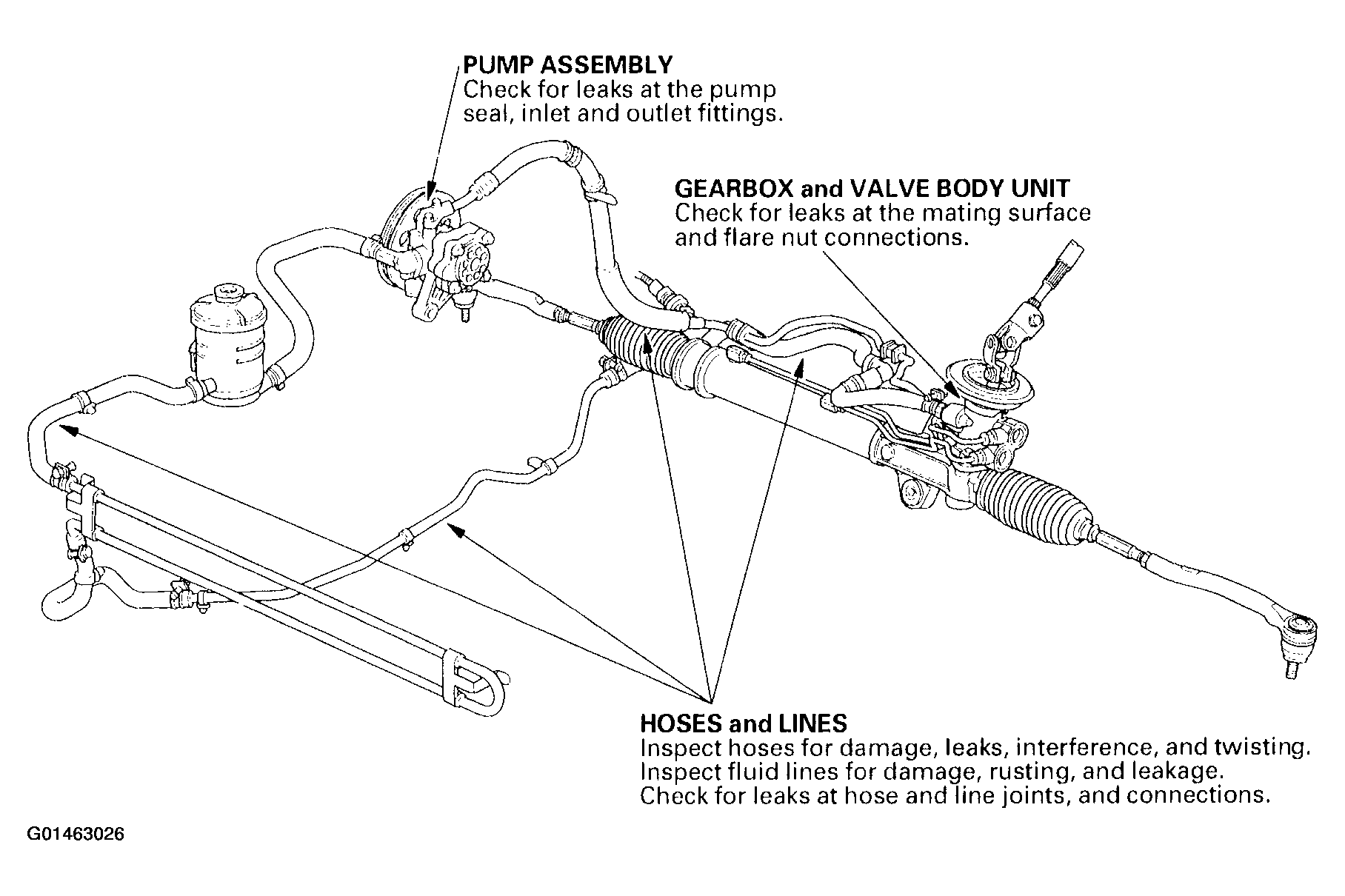

Fig 1: Checking For Leaks

G01463026

Courtesy of AMERICAN HONDA MOTOR CO., INC.
