Heater Control Panel (LX) Connector End View

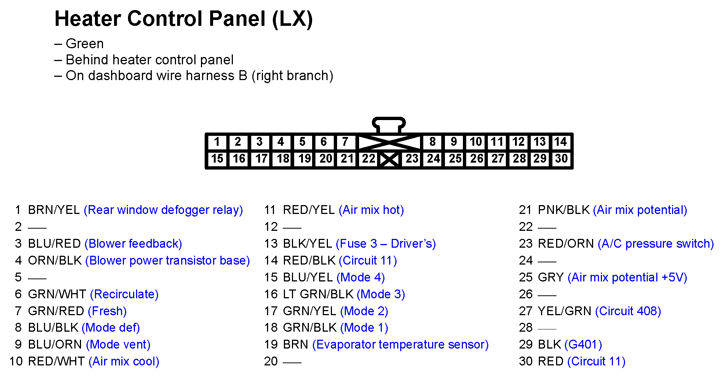

Fig 1: Heater Control Panel (LX) Connector End View

G11251256

Courtesy of AMERICAN HONDA MOTOR CO., INC.
