Air Mix Control Motor Replacement

  1. Disconnect the 7P connector (A) from the air mix control motor (B). Remove the rod (C) of the air mix control motor from the air mix control linkage (D). Remove the self-tapping screws and the air mix control motor from the heater unit.

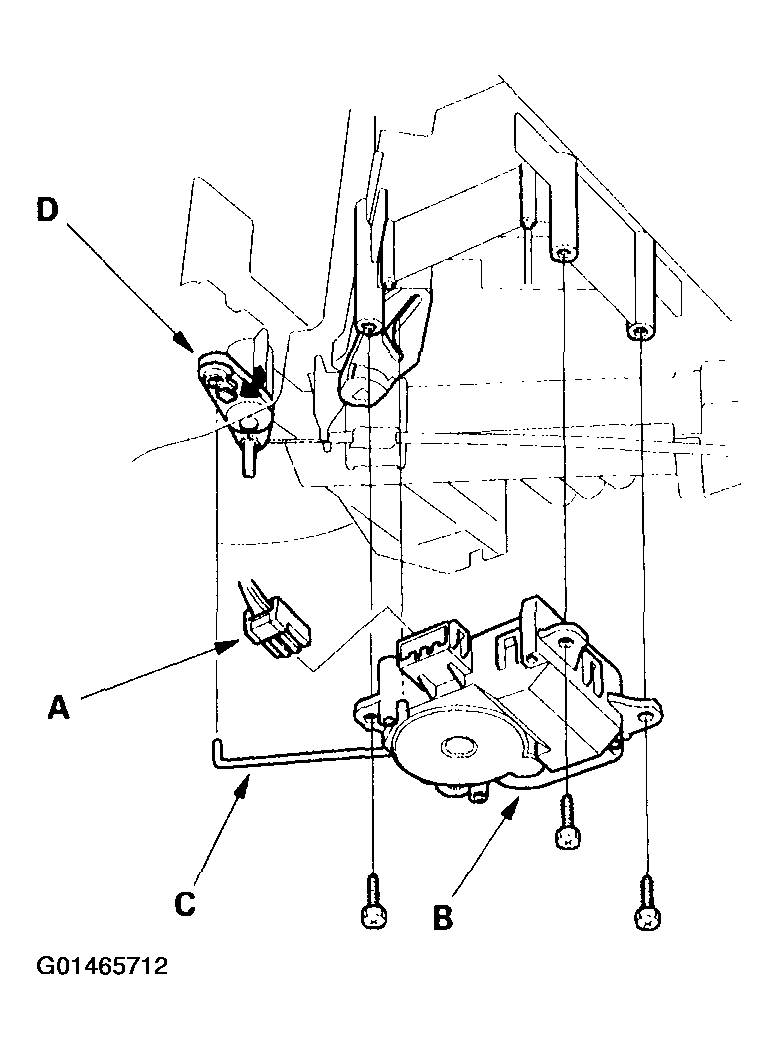

    Fig 1: Removing The Self-Tapping Screws & The Air Mix Control Motor From The Heater Unit
    G01465712Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
