Recirculation Control Motor Replacement

  1. Remove the glove box stops, and let the glove box hang down (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Remove the wire harness connectors from the evaporator.
  3. Disconnect the 7P connector (A) from the recirculation control motor (B). Remove the self-tapping screws and the recirculation control motor from the blower unit.

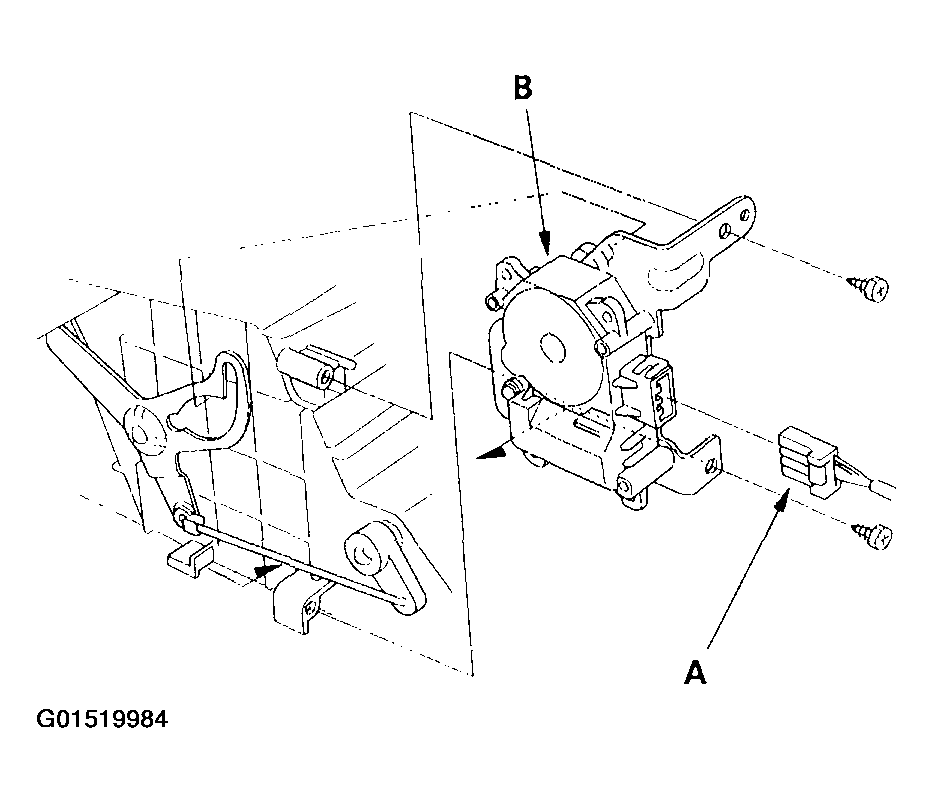

    Fig 1: Disconnecting 7P Connector From Recirculation Control Motor
    G01519984Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
